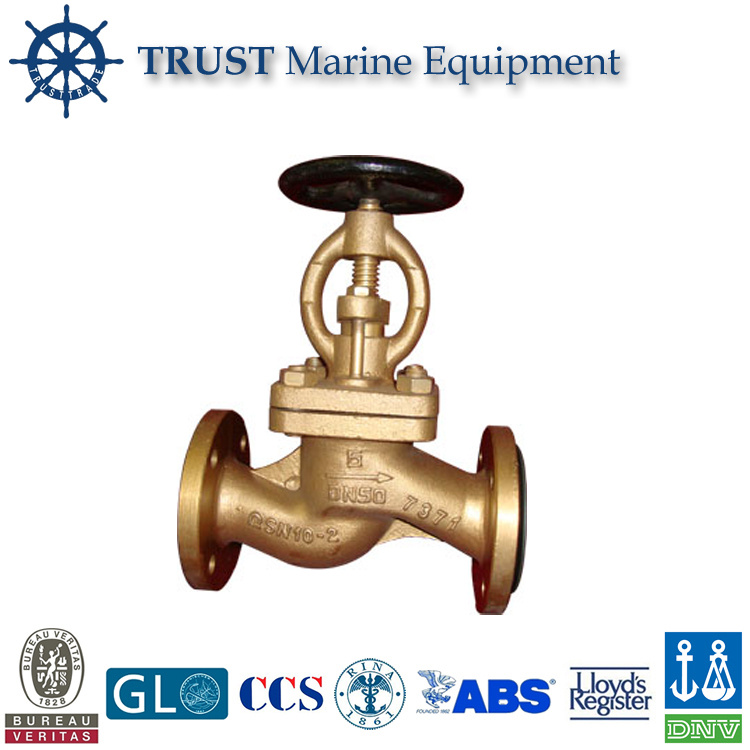

marine bronze flanged stop globe valves
Product Description
Specifications
flange end bronze globe valve:
1.GB standard: GB/T587-93
2.PN---0.6Mpa,1.0Mpa,1.6Mpa,2.5Mpa
3.size:DN15-DN150
flange end bronze stop valve:
TYPE:globe and angle(A,B,AS,BS)
DN:15-150mm
PN:1.0 ,1.6,2.5,0.6
MATERIAL:bronze,cast iron,ss,cast steel
of course we can produce valves as your requirement or drawing.
Main Products:
a) standard marine-purposed butterfly valve
b) blind plate valve
c) lifting stop valve
d) check valve
e) gate valve
f) sea valve
g) valve chest
h) quick close valve
i) storm valve
Additional Specification:
with nominal diameters of DN6MM-DN750MM,
Nominal pressure PN0.1Mpa-PN6.4Mpa;
Certificates:
It has certified by some authoritative ship classification societies such as CCS,GL,BV,DNV,KR,ABS,ISO9000:2000 Quality system;
Air pipe head is certified by CCS,KR,GL ISO9000:2000 Quality system.
How to order:
1) Mounting type:
2) Flange standard:S-ISO/J-JIS/G-GB etc.
3) Materials of valve seat: Buna-N rubber?
Fluorinel-containing Rubber?
or tetrafluoro thylene containing rubber?
4) Materials of Valve body:Cast steel?
Cast Iron?
Ductile cast iron?
Bronze?
Stainless steel?
5) Nominal diameter:DN(mm)
6) Nominal pressure PN (mpa)
7) Operating type:Handle manual?
Worm manual?
Spiral operating manual?
Electrodynamic type?
Pneumatic type?
hydraulic type?
8) Structure type:Centric Type?
Double eccentric type?
Jingjiang trust trading Co., Ltd. Was established in 2008, we' Re specializing in manufacturing & exporting marine equipment, construction material, ship models and heating treatment fixtures. With professional mechanical engineers and sales staff mastered in international trade, we' Ve been devoting ourselves to introducing Chinese best products to worldwide customers. Our advantages are good price, excellent quality, fast delivery & good service.
Our main scope of business:
Marine:
*Propeller & shaft system
* lifeboat, davit, life raft, life jacket, life buoy,
* anchor, chain, crane, winch, windlass, bollard, fairlead, rope, fender
* marine door, window, ladder, valve, pump & other fittings
* Marine hardwares, blocks, riggings, wire ropes and slings
* fishing tackles (nets, compass, light, cage)
* Water hydrophore, fresh water maker, sewage treatment plant
Construction material: Galvanized steel planks
Heating treatment fixtures
We can also supply complicated equipment according to buyer' S drawing.
We warmly welcome our customer' S comments and advice. In the future, we will work closely with our factories to improve ourselves in quality and service so as to serve our customers better.
