General design: API 609
Mounting pad: ISO 5211
Face-to face: API 609 and EN558 1 to 20 series
Flange drilling: ANSI class125/150 and DIN PN6/PN10/PN16/PN25
Body: Ductile iron
Disc: AL-bronze/stainless steel
Shaft: Stainless steel/17-4pH
Seat: EPDM, NBR and viton
Actuating form: Hand lever, worm gear, electric and pneumatic actuator
Size: DN50 to DN600mm

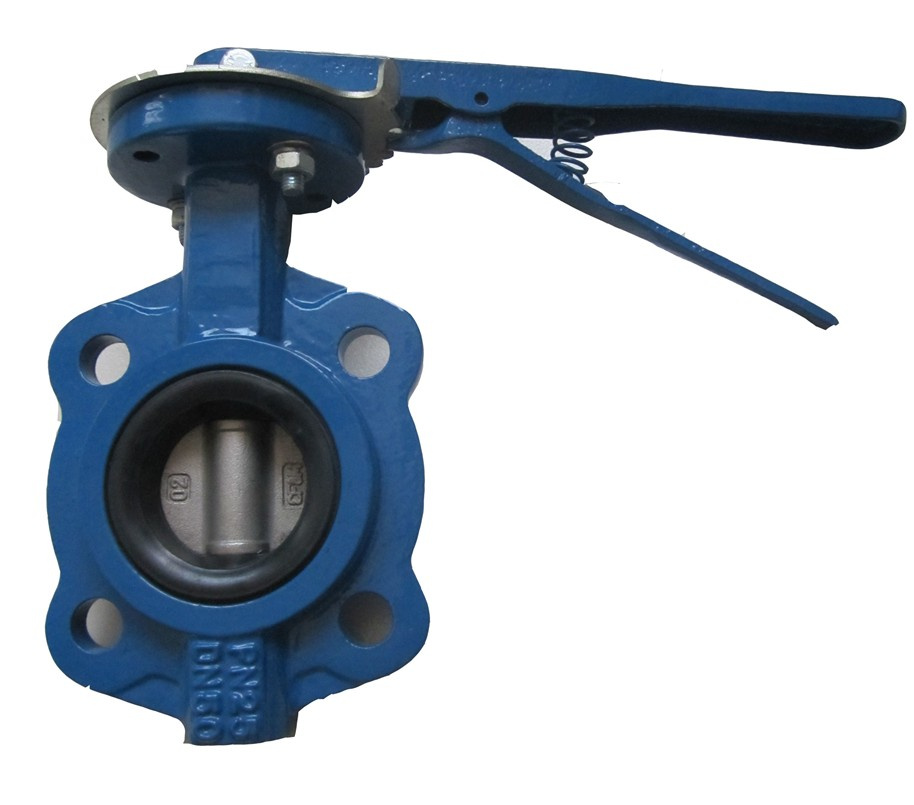

Strengths of butterfly valve:
1. It is single and compact in structure and light in weight, and easy for assembly and disassembly, and maintenance.
2. The operating torque of it is small. When turning 90(it can open or close with light and fast action.
3. It is small in flowing resistance and good in energy-saving effect, with discharge characteristic approximating inclined straight line.
4. It is festured by reliable sealing, zero leakage witj ten thousands ofopening and closing times.
5. The valve can be made of various materials, adapted RO all kinds of media.
Our service:
Our low price, good quality products and promised delivery time brought the trust of client globally. If you are interested in our products, kindly please inform me anytime. We are glad to prepare a quotation for perchasing referance and quite sure our offer will extend an added advantage over to your current source of supplies. Furthermore, we are also able to process order as per your demand.
AFCON Ningjin Yahua Industries Co., Ltd. is a manufacturer specialized in design and manufacture industrial valves. It can produce more than 300 specifications, 10 categories, for example wafer type butterfly valve, flanged butterfly valve, eccentric butterfly valve, high-performance butterfly valve, check valve, ball valve, rubber wedge gate valve, Y-type strainer and pipefittings.
In 1999 the company established its own pipefitting research center. The factory has more than 30 engineers including 10 senior engineers, 2 American experts. It can design, manufacture and test the valves according to international standard such as ANSI, BS, DIN and national standards, and It also can meet customers requirement.
The company have many authentication such as ISO9001: 2000 EC's PED, CE, Germany TRD100/WO Material, Norwegian DNV Classification Society Factory as well as British LR, and ltalian RINA product. Also it set up its own quality contral and assurance system so the product can reached many countries and regions, such as the United States, Britain, German, Italy, France, Spain, Hong Kong and so on.
Meeting your requirements is always our mission. We will do our best to meet all with first-class quality, competitive price and best delivery.
