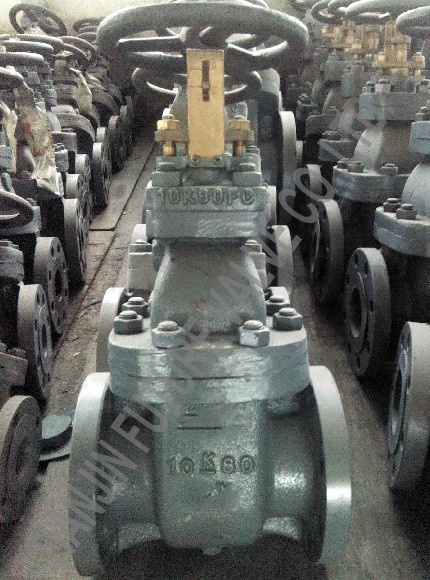

FUTURE VALVE - Marine Valve - cast iron gate valve 10K 80A JIS F-7364

Marine cast iron gate valve used in shipbulding.

Applicable Scope:
The products are used for controling the medium to open and close, preventing refluence in fuel iol piping, lubricating oil piping, water piping and steam piping at temperatures 120C or less.
Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

Type: JIS F7363/7364/7369 5K/10K/16K

5K type:
Size: DN50-DN450
Normial Pressure: 0.49Mpa
Seal Pressure: 0.76Mpa
Intensity Pressure: 1.03Mpa

10K type:
Size: DN50-DN450
Normial Pressure: 0.49Mpa
Seal Pressure: 0.76Mpa
Intensity Pressure: 1.03Mpa

16K type:
Size: DN65-DN400
Normial Pressure: 1.57Mpa
Seal Pressure: 1.73Mpa
Intensity Pressure: 2.36Mpa

Part Name Material
Body, Bonnet: Cast Iron, DI
Disc, Seat: Cast bronze Stainless Steel
Stem: Bronze Stainless Steel
Packing Flexible Graphite

Prod Model:	Z45T-10K
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body, Bonnet:	Cast Iron,Di
Disc, Seat:	Cast Bronze Stainless Steel
Stem:	Bronze Stainless Steel
Connection Form:	Flange
Material:	Cast Iron
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Inside Gate Valve
Application:	Household Usage
