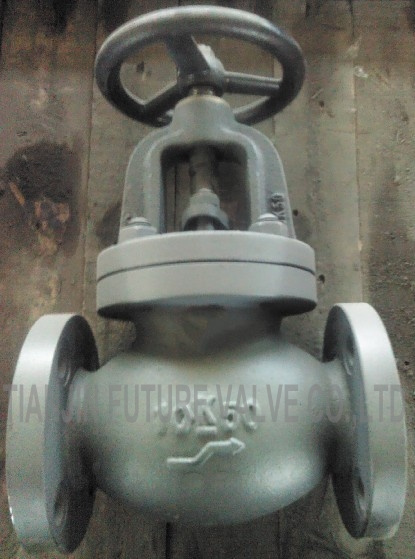

FUTURE VALVE - Marine Valve - cast iron globe valve 10K 50A JIS F7307
Related Keywords: Globe valve, stainless steel globe valve, flanged globe valve, pn16 globe valve
Marine cast iron globe valve used in shipbulding.
Applicable Scope:
The products are used for controling the medium to open and close, preventing refluence in fuel iol piping, lubricating oil piping, water piping and steam piping at temperatures 205C or less.
Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
Normial Pressure: 0.98Mpa
Seal Pressure: 15.4kgf/cm2-11kgf/cm2
Intensity Pressure: 21kgf/cm2-15kgf/cm2
Part Name Material
Body, Bonnet: CI, DI.
Disc, Seat: Cast Bronze, Stainless Steel
Stem: Bronze, Stainless Steel
Packing Flexible Graphite
Tianjin Future Valve Co., Ltd. is specialized in research, development, production and sale of butterfly valve, check valve, gate valve for years. With professional staff, scientific management system, strong production capacity, strict quality control, on-time delivery, quick response service and individual approach to every customer, we have confidence that we could establish long-term, win-win partnership with you!
