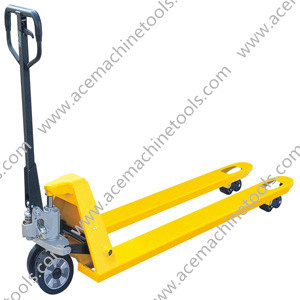

Max.3000kg innovative design forklift hand truck
Specification:
Most standard and popular model with capacity 2500 3500kgs.
Fork Lowering speed is controllable, operated by hand control and foot pedal.
Ergonomic rubber wrapped handle, which is comfortable and convenient to operate.
Forks: The thickness of the new type is 53mm to make strength increased.
Entry / exit roller, more freely travel.
Equipped with over-load valve, with long service time.
3 position hand control Raise, Lower, Neutral.
Adjustable pump cap ensures a long service life.
Ergonomic large rubber handle with three control lever.
Options
1) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
2) Fork length: 800mm, 900mm, 1000mm.
3) Foot pedal release.
4) Pump color: Black painting, silver painting, silver galvanized.
| Parameter |
| MODEL | ABF |
| Capacity | Q(kg) | 2500/3000 | 2500/3000 |
| Lowered fork height | h3(mm) | 85 | 75 |
| Steeling wheel | mm | 200 | 180 |
| Fork wheel single | mm | 80*93 | 74*93 |
| Fork wheel tandem | mm | 80*70 | 74*70 |
| Max.lift height | h3(mm) | 200 | 190 |
| Total height | h14(mm) | 1224 | 1214 |
| Overall lenght | I1(mm) | 1483/1533/1603 | 1483/1533/1603 |
| Fork lenght | I(mm) | 1100/1150/1220 | 1100/1150/1220 |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
| Ground clearance,centre of wheelbase | m2(mm) | 32 | 22 |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 1733/1733/1803 | 1733/1733/1803 |
| Aisle width for pallets 800*1200 lenght | Ast(mm) | 1883/1783/1803 | 1783/1783/1803 |
| Turning radius | Wa(mm) | 1216/1266/1336 | 1216/1266/1336 |
| Service radius | kg | 63-75 | 63-75 |
