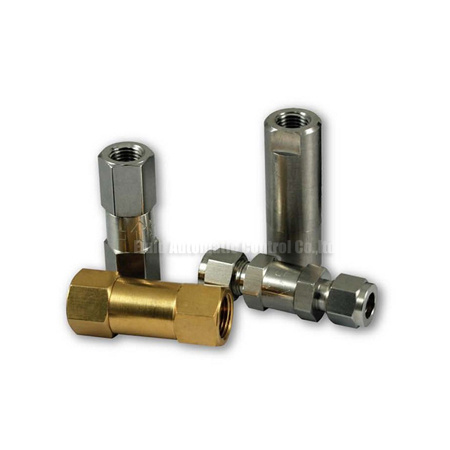

*MCV Mini high pressure in line check valve
*Maximum working pressure up to 3000PSI
*Body Material Stainless steel 316 or brass for option
*Port Size G1/8”,G1/4”,G3/8,G1/2”
*Various end thread type for option,easy for joint pipe-work
*Flow direction one way type
ORDERING CODE |
MCV | 02 | M | 3 |
Type | Port Size | Ends Thread Type | Spring Open Pressure |
MCV:MCV Mini In Line Check Valve | 01:G1/8" | M:Male Thread | 1/3:1/3PSI |
02:G1/4" | 3:3PSI |
03:G3/8" | F:Female Thread | 10:10PSI |
04:G1/2 | 25:25PSI |
SPECIFICATION |
Model no | MCV-01 | MCV-02 | MCV-03 | MCV-04 |
Body Material | SS316 Material or Brass Materil |
Port Size | G1/8" | G1/4" | G3/8" | G1/2" |
Maximum Working Pressure | 3000PSI~6000PSI |
Seal Material | NBR,VITON |
Liquid Coeficient | 0.16 | 0.47 | 1.47 | 1.68 |
Operating Temperature | –20~120ºC |
