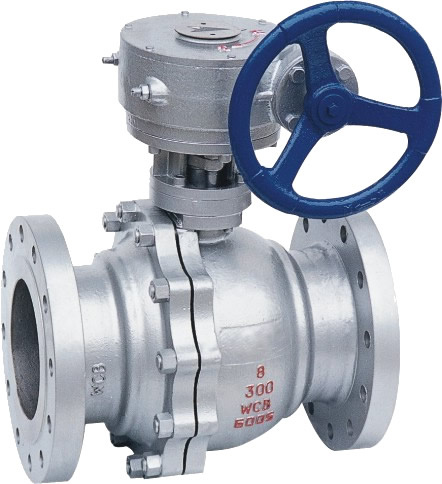

Metal Hard Seal Ball Valve

Metal Hard Seal Ball Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
All-welded ball valve is a new kind of new energy-saving truncation valve researched and developed in our factory by introducing foreign advanced design technology and equipment. Due to its special structure, novelty, utility, light weight, small material consumption, it is a kind of very good energy conservation and environmental protection product in today's environmental protection and energy saving economical situation. The feature is when the valve closes, the internal leakage can achieve zero leakage, it can reduce the loss caused by energy loss to the lowest point, which greatly improves the energy saving and fluid measurement accuracy. The valve is composed by all-welded body and carbon enhancement Teflon gasket which can be frequently operated. On the condition of impurities and chemicals, it can run for a long time. Fine grinding stainless steel sphere ensures the free opening and closing for years, and it performs reliably. Floating ball structure, cant elasticity guarantees the seal ring to press tightly on a sphere. Even in the case of pressure not stable, the valve can guarantee closeness. It solves the phenomenon of "escape, emit, drop, leak" existed in all delivery systems, thus greatly improves the safety, reducing the expenses for maintenance use, providing convenience to the users.

This valve is one of the most ideal block valves applied to industries like urban heating, city gas, natural gas pipeline, chemical industry, power, light industry, food, textile etc. After years of market tests, the product quality reaches the same level of similar products abroad. So it has a good reputation among the users.

Application

City Gas: Gas output pipelines, trunk and feeder supply lines etc.
Central heating: large heating equipment output pipeline, trunk and feeder
Heat exchanger: opening and closing of the pipes and the loops
Iron and steel plant: all kinds of fluid pipes, exhaust pipes, gas and heat supply pipelines, the fuel    supply lines
All kinds of industrial equipment: all kinds of heat pipes, industrial gas and heat distribution pipelines

Features

Integral welded ball valve doesn't have external leakage phenomenon.

The valve seat is composed by carbide Teflon seal ring and belleville spring, so it is adaptable for the change of pressure and temperature. It won't produce any drainage within the marked range of pressure and temperature.

The machining process of sphere is traced and checked by advanced computer detector, so the sphere has high machining accuracy.

The valve body material is the same as pipe material, so there will be no unbalanced stress, and it won't distort due to earthquake and the vehicle going through the ground. The pipe has resistance to aging.

Sealing ring uses RPTFE material with 25% Carbon, which ensures no leakage.

Directly buried type welded ball valve can be directly buried underground, people don't have to build a high large valve well, they only need to set up small shallow wells in the ground, which greatly saves the construction cost and the project time.

According to the demand of pipeline construction and design, people can adjust the length of the body and the height of the valve stem.

The machining precision of sphere is very precise, convenient operation, no harmful interference.

Adopting advanced raw material, ensure the pressure over PN25.

Compared with the same specification products in similar industry, the body is smaller, and more beautiful.

Service life more than 15 years in the event of normal operation and usage of the valve.

Main parts and materials

The valve body: ST37
Ball core: SS304
The valve stem: 2Cr13
The valve seat: PTFE- C carbon fiber
Prod Model: Q341Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn15-300
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: City Gas
Material: Steel
Driving Mode: Manual, Pneumatic, Electric and Hydraulic
Nominal Pressure: Pn16-100
Function: Blow-Down, Relief, Bypass
Guocheng Valve Co, Ltd was found in 2003, which is a professional integral with in GB, API, JIS and non-standard valve design, manufacture, sales, service. We produce all welded ball valve, forged steel ball valve, buried type welded ball valve, hard seal ball valve, eccentric half ball valve, V-Type adjusting ball valve, fixed ball valve, floating ball valve, insulation ball valve, 3-way ball valve etc.

The company is located in Zhejiang's Wenzhou hometown of pump and valve-Oubei Town, country into a va1ve to high quality products to meet the needs of users, in good faith to serve the broad masses of users.

Guocheng Valve launches its main product of full welded ball valve with international advanced producing process and technique and international quality assurance and control procedure and advanced producing and operation management. Our valve products are widely applied in countries and regions like, Europe, Middle East, Southeast Asia and China etc. Main products of fully welded ball valves, underground fully welded ba11 valves, relief ball valve and natural gas ball valves with diameter of DN15~DN1200 and operating pressure of 1.0MPa~6.4MPa and operating temperature of -196 ° C~ 550 ° C are available currently. Materials: Carbon steel, alloy steel, heat resistant steel, stainless steel, operational methods: Manua1, with gear, electrical, hydraulic and automatic etc. Main products comply with relevant technical standards in different regions and countries, such as ANSI, API, EN, BS, DIN, ASME and ISO etc, which are applied in various industries of petroleum, chemical industry natural gas, thermal, ship industry, electricity, pharmacy, metallurgy, food, military and construction engineering etc.

We are sincerely welcome new and old customers to contact us for further business negotiation!
