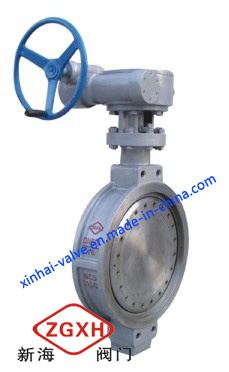

Metal Hard Sealed Wafer Type Eccentric Butterfly Valve
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Structure: Butterfly
Pressure: Low to High pressure
Power: Manual
Material: Casting
Temperature of Media: Low to High Temperature
Media: Oil Water Steam
Operation: Handle, Electric, Pneumatic, Gear Actuator
1) Sizes: 50~1200mm; 2''~48''
2) Class: 150~300class
3) Material: WCB, LCB, CF8, CF8M, CF3, CF3M, WC1, WC6, WC9, CN7M, Monel
4) Stardards:
A) Standars Design Specifications: API609, ANSI B16.34
B) Face to Face Dimension: ANSI B16.10
C) End flange dimensions: ANSI B16.5
D) Flange Tyepe & Dimensions: ASME B16.5, ASME B16.47
E) Inspection and test: API598
|
Part Number |
Part Name |
Material |
|
WCB |
CF8 |
CF8M |
|
1 |
Cover |
ASTM A105 |
ASTM A182 F304 |
ASTM A182 F316 |
|
2 |
Bolt |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8 |
|
3 |
Gasket |
Graphite |
Graphite |
Graphite |
|
4 |
Split Ring |
ASTM A182 F6a |
ASTM A182 F304 |
ASTM A182 F316 |
|
5 |
Body |
ASTM A126 WCB+13Cr |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
6 |
Stem |
ASTM A182 F6a |
ASTM A182 F304 |
ASTM A182 F304 |
|
7 |
Bushing |
Copper alloy |
Copper alloy |
Copper alloy |
|
8 |
Sealing ring |
SS304+Grephite |
SS304+Grephite |
SS316+Grephite |
|
9 |
Gland Retainer |
ASTM A105 |
ASTM A182 F304 |
ASTM A182 F316 |
|
10 |
Bolt |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8 |
|
11 |
Pin |
ASTM A276 420 |
ASTM A276 304 |
ASTM A276 316 |
|
12 |
Bushing |
PTEE+Bronze |
Luberited Bronze |
Luberited Bronze |
|
13 |
Stem Packing |
Graphite |
Graphite |
Graphite |
|
14 |
Bolt |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8 |
|
15 |
Nut |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 8 |
|
16 |
Gland Flang |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
17 |
Yoke |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
18 |
Blot |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8 |
|
19 |
Nut |
ASTM A193 2H |
ASTM A194 8 |
ASTM A194 8 |
|
20 |
Washer |
Carbon steel |
Carbon |
Carbon |
|
21 |
Ger |
Carbon |
Carbon |
Carbon |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Wafer |
| Seal Form: |
Supercharging Pressured Sealed |
| Material Of Seal Surface: |
Metal Hard Sealed |
| Structure: |
Three-Eccentric Sealing |
| Working Temperature: |
Low to High Temperature |
| Work Pressure: |
Low to High Pressure |
Zhejiang Xinhai Valve Manufacturing Co., Ltd, located in Oubei, Wenzhou city, was established in 1986. with more than 20 years experience, our company now becomes a professional valve manufacturer by developing, manufacturing, marketing and servicing. And it covers an area of 10, 000 square meters and has two subsidiary factories.
Our product includes gate, check, globe, ball, butterfly, plug, strainer and other valve. The valves are manufactured according to ANSI, API, DIN, GOST, BS, JIS, Chinese GB standers and the customers' requirements. These products have been installed throughout the world, having a wide variety of applications in the Gas, Oil, Refining, Chemical, Marine, Power Generation and Pipeline Transmission Industries.
Pressure range: Class125-Class2500, PN6-PN420
Size range: NPS1/2-NPS48
Operation type: Manual, gearbox, chain wheel, pneumatic, electronic, etc
Connection End: Flanged, BW, SW, NPT, wafertype, etc.
Materials(casting): WCB, WCC, LCB, LCC, LC1-3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, Monel, etc.
In order to introduce the international quality management system, Xinhai have got the approval o ISO 9001, API-6D, CE and Chinese TSG certification. Also, Xinhai established a multi-functionl phys-chemical lab to futher supervise the quelity time to time and fittde out spectrum analyzer, portable spectrograph(PMI), impact tester, hardness meter, tensile tester, thickness meter, magnetic particle tester, gugitive emission tester and NDE testing equipment.
The main target of Xinhai is to offer a high quality products and service to ensure the highest degree of satisfication and fidelity of our customers. Welcome the new and old customers to cooperate with Xinhai to explore wider global markets and create more brilliant future together!
