Specifications

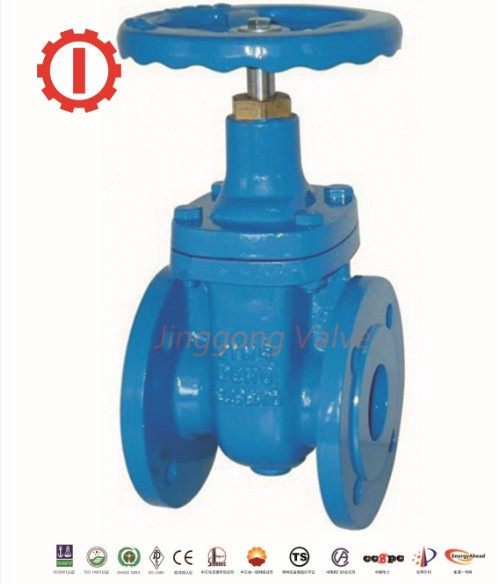

No Rising Stem Gate Valve
1. Manufacturer
2. ISO9001: 2008
3. Sell to Europe, Africa, South America
4. BS5163, DIN3352 etc
No Rising Stem Gate Valve
Specification:
1. Size: 1-1/2"-24" (DN40-DN600)
2. Design Standard: BS5163, AWWA C509/C515, DIN3202 F4/F5, MSS SP-70.
3. End Flange Connection: ANSI B 16.1, BS EN 1092(PN10, PN16), DIN 2501(PN10, PN16), BS 10 Table E
4. Disc: Grey iron, Ductile iron, with or without EPDM
5. Seat: Stainless steel, Brass/Bronze etc
6. Testing: API 598, ISO 5208
7. Options: Lever, Gearbox operate, Electric actuator, Pneumatic operator, Opening indicator, With limit switch, Others.
8. Type: Non rising stem, Rising stem
9. Finishing: Epoxy coating, Painting etc
10. Usage: Water supply and drainage, Electric power, Petrochemical, Metallurgical, Firefighting / Fire fighting, or other industries.
Pressure Testing & Quality Control:
Working Pressure
10 bar / 16 bar / 125 lbs / 150 lbs etc
Testing Pressure
Shell: 1.5 times of wooking pressure
Seal: 1.1 times of working pressure
Working Temperature
-10° C to 80° C (NBR)
-10° C to 120° C (EPDM)
Suitable Media
Water, Oil and gas
Parts & Materials:
Parts
Materials
Body
Grey iron, Ductile iron, Carbon steel, Stainless steel
Disc
Grey iron, Ductile iron, Carbon steel, Stainless steel, with or without EPDM
Seat
EPDM / NBR / VITON / PTFE
Stem
Stainless steel, Brass/Bronze etc
Bushing
PTFE
"O" ring
NBR, PTFE
Level
Malleable iron, Carbon steel
Jinggong Valve Factory is one of the leading valve manufactures in China which was established in 1978. It can offer a wide variety of materials and sizes of valves which was extensively used in petroleum field, energy field, metallurgy, chemical industry, power station and so on, including the butterfly valve, ball valve, globe valve, gate valve, check valve, needle valve, control valve, knife gate valve, bellows valve and other special valves. The main materials of valve body are ductile iron (for gas valve), cast and forged carbon steel, high-temperature alloy steel and anti-corrosive austenitic stainless steel etc. Its nominal diameter is 1/8"-80" and nominal pressure is 150lb-2500lb.
Meanwhile, our products had acquired national pressure pipeline AZ authentication, API6D, CE certification and ISO9001 standard in Moreover, our factory is one of the members of Materials Source Market of Sinopec, Supplying Network of valves of National Power Systems, the firs rate supplying network of high-MID pressure valves of CNPC, China General Machinery Valve Industry Association, Wenzhou Pump & Valve Association and Scientific & Technological Information Network of Machinery Industry Valve.
Our works had got the right to import and export, thus ours products had exported to many countries, such as the Africa, Europe, South Asia, Japan, North America, Middle East, etc. Accordingly, we had earned good reputation between our clients in those countries for ours high quality, competitive price and excellent after sale services.
We adhere to two F, that is "Credibility First, Quality First". We endeavor to continuously supplying our best quality and efficient services to all of our customers and giving every user and consumer in the world a chance of enjoying the benefits of our cooperation. All your inquiries will be met with a quick response and courteous welcome.
