Metal Seated Rising Stem Gate Valves

Metal Seated Rising Stem Gate Valves
Price: US $ 43.9/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Specification

Metal Seated Rising Stem cast iron Gate Valve
1) DN40-1200 PN10/16
2) ISO and CE Certificates
3) Relable OEM Factory, high quality, low price, fast delivery


Single Cuniform Gate Disc Double Cuniform Flash Board Gate Double Parallel Flashboards Concealed Pole Cuniform Single Gate Disc.

This kind of product have been used in the fields of petro-chem, pharma centicallnd and power Industry, etc. It is used by means of open and close on the pipes of steam, water and oil, etc.

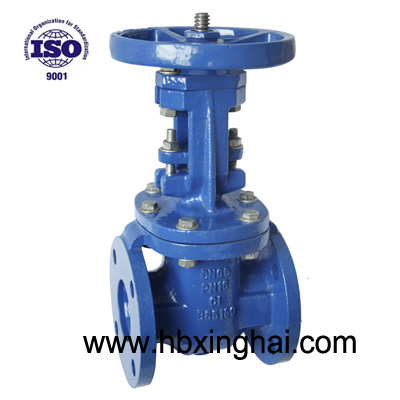

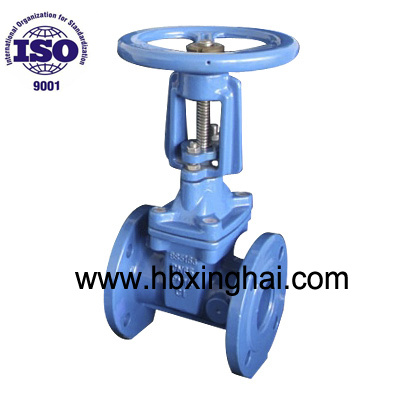

RESILIENT SEATED RISING STEM GATE VALVE

Design and manufacture conform to BS5163, DIN3352, DIN3202 F4/F5

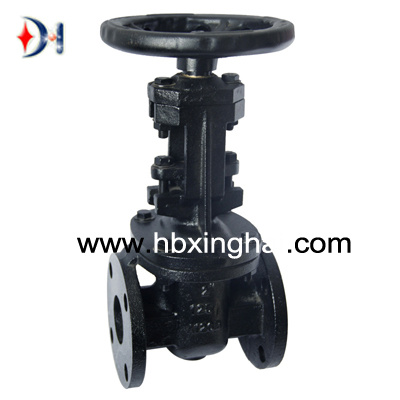

METAL SEATED RISING STEM GATE VALVE
Design and manufacture conform to BS5150, MSS SP-70

Epoxy coating or Special coating for potable water

Operated by Handwheel operated (gear box be optional)

METAL SEATED RISING STEM GATE VALVE

NOPART NAMEMETERIAL
1BODYCAST IRON, DUCTILE IRON
2BODY SEATBRONZE,BRASS
3WEDGE SEATBRONZE,BRASS
4WEDGE CAST IRON, DUCTILE IRON
5STEM STAINLESS STEEL
6GASKETGRAPHITE
7BOLTSCARBON STEEL
8NUTSCARBON STEEL
9BONNETCAST IRON, DUCTILE IRON
10PACKINGGRAPHITE
11BOLTSCARBON STEEL
12NUTSCARBON STEEL
13GLAND FOLLOWERCAST IRON, DUCTILE IRON
14STEM NUTBRONZE,BRASS
15HAND WHEELCARBON STEEL,CAST IRON



   RESILIENT SEATED RISING STEM GATE VALVE

NOPART NAMEMETERIAL
1BODYDUCTILE IRON
2DISCDUCTILE IRON with EPDM/BUNA
3DISC NUTDUCTILE IRON
4NUTQ235A
5BONNETDUCTILE IRON
6STEMQ235A
7SEAL RINGNBR/EPDM
8NUTBRASS
9HAND WHEELDI/C.S.
10BOLTQ235A
11SEAL RINGNBR/EPDM
12LOCATING RINGQ235A







Prod Model: DN65 2.5''
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour: Black, Blue
Media: Water
Standard Or Nonstandard: Standard
Brand: Xinghai and OEM Provided
Material: Cast Iron
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Household Usage
Hebei Xinhe Xinghai Valve Industry Co., Ltd manufactures wafer and flanged butterfly valves, wafer check valves, cast iron gate valves, cast iron Y strainers and other valve components. All the valves meet ISO, BS, DIN, ANSI or per customer specified standards. Our valves have been installing on the pipelines in water, Oil, gas and other industries.

All our valves adopted advanced designing, strict QA procedure, foundry, machining and assembly integrated process assured quality control. We are DNV ISO 9001 certified company with strong technical support, fine manufacture, advanced inspection, reliable quality. Our products are sold both at home and abroad, which received very good reputation.

"Quality First, Customer First" always is the core of our concept of business management. To serve the needs of valve market and customers, we will provide users with reliable, high-quality valves through carrying out technological innovation, developing new products and expanding services.

We sincerely hope your visit and cooperation, and establish win-win trade relationship to have mutual development.
