Specification
Metal Seated Rising Stem cast iron Gate Valve
1) DN40-1200 PN10/16
2) ISO and CE Certificates
3) Relable OEM Factory, high quality, low price, fast deliverySingle Cuniform Gate Disc Double Cuniform Flash Board Gate Double Parallel Flashboards Concealed Pole Cuniform Single Gate Disc.
This kind of product have been used in the fields of petro-chem, pharma centicallnd and power Industry, etc. It is used by means of open and close on the pipes of steam, water and oil, etc.
RESILIENT SEATED RISING STEM GATE VALVEDesign and manufacture conform to BS5163, DIN3352, DIN3202 F4/F5

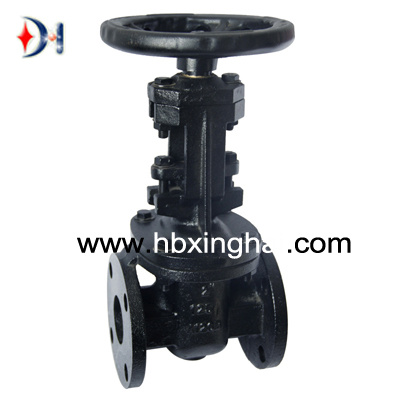

METAL SEATED RISING STEM GATE VALVE
Design and manufacture conform to BS5150, MSS SP-70
Epoxy coating or Special coating for potable water
Operated by Handwheel operated (gear box be optional)

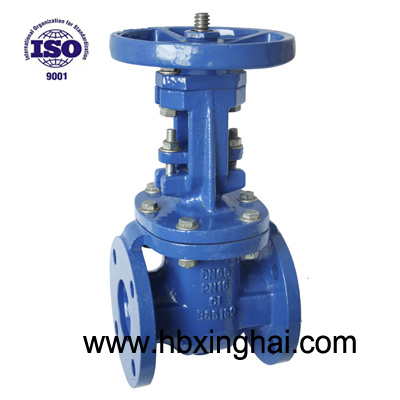

METAL SEATED RISING STEM GATE VALVE
NO | PART NAME | METERIAL |
1 | BODY | CAST IRON, DUCTILE IRON |
2 | BODY SEAT | BRONZE,BRASS |
3 | WEDGE SEAT | BRONZE,BRASS |
4 | WEDGE | CAST IRON, DUCTILE IRON |
5 | STEM | STAINLESS STEEL |
6 | GASKET | GRAPHITE |
7 | BOLTS | CARBON STEEL |
8 | NUTS | CARBON STEEL |
9 | BONNET | CAST IRON, DUCTILE IRON |
10 | PACKING | GRAPHITE |
11 | BOLTS | CARBON STEEL |
12 | NUTS | CARBON STEEL |
13 | GLAND FOLLOWER | CAST IRON, DUCTILE IRON |
14 | STEM NUT | BRONZE,BRASS |
15 | HAND WHEEL | CARBON STEEL,CAST IRON |

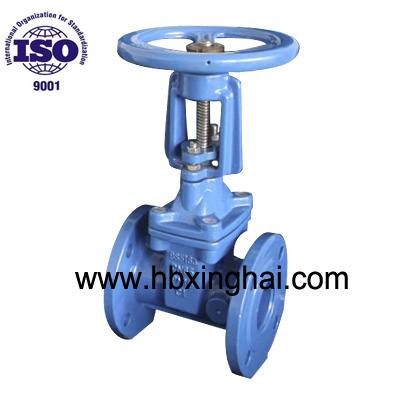

RESILIENT SEATED RISING STEM GATE VALVE
NO | PART NAME | METERIAL |
1 | BODY | DUCTILE IRON |
2 | DISC | DUCTILE IRON with EPDM/BUNA |
3 | DISC NUT | DUCTILE IRON |
4 | NUT | Q235A |
5 | BONNET | DUCTILE IRON |
6 | STEM | Q235A |
7 | SEAL RING | NBR/EPDM |
8 | NUT | BRASS |
9 | HAND WHEEL | DI/C.S. |
10 | BOLT | Q235A |
11 | SEAL RING | NBR/EPDM |
12 | LOCATING RING | Q235A |

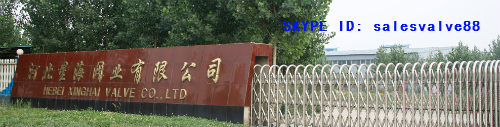

Hebei Xinhe Xinghai Valve Industry Co., Ltd manufactures wafer and flanged butterfly valves, wafer check valves, cast iron gate valves, cast iron Y strainers and other valve components. All the valves meet ISO, BS, DIN, ANSI or per customer specified standards. Our valves have been installing on the pipelines in water, Oil, gas and other industries.
All our valves adopted advanced designing, strict QA procedure, foundry, machining and assembly integrated process assured quality control. We are DNV ISO 9001 certified company with strong technical support, fine manufacture, advanced inspection, reliable quality. Our products are sold both at home and abroad, which received very good reputation.
"Quality First, Customer First" always is the core of our concept of business management. To serve the needs of valve market and customers, we will provide users with reliable, high-quality valves through carrying out technological innovation, developing new products and expanding services.
We sincerely hope your visit and cooperation, and establish win-win trade relationship to have mutual development.
