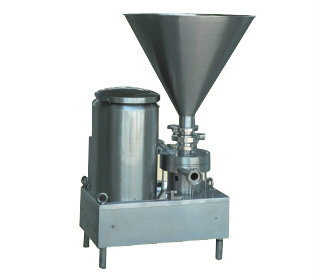

Powder- water Mixer
The mixer is constitute of a main body and a centrifugal water pump with vertical installation. The liquid and solid will be pumped in respectively, thus the condensation of material will be avoided. Pumped in liquid with high speed will generate vacuum to pump solid. And the solid will be pumped in uniformly with the regulation of valve.
The machine is featured of compact design, and multi function, and can mix many kinds of solid rapidly and uniformly without contacting of air.
Application:
The production of syrup, sorbit, glucose, lactose, and other by- products. The reduction of powder milk, dissolving of cocoa powder or sugar in milk, dissolving of whey powder. The production of saline, and flavour yoghurt, and other dairy products.
Name |
10 t/h |
20 t/h |
30 t/h |
Impeller diameter(mm) |
140 |
170 |
170 |
Inlet diameter(mm) |
38 |
51 |
51 |
Maximum press (mpa) |
0.3 |
0.3 |
0.3 |
Material temperature(°C) |
≤80 |
≤80 |
≤80 |
Motor power(kw) |
3.0 |
5.5 |
7.5 |
Dimension |
732×500×1005 |
732×500×1005 |
732×500×1005 |
Weight(kg) |
112
|
125 |
155 |
Shanghai Jiadi Company is a highly professional and experienced manufacturer of fruit and vegetables production line and food packaging mchine in China. We manufacture and supply a wide range of processing line and packing machines to customers across the world. Our products include:
Tomato paste processing lines
Banana powder processing lines
Mango and pineapple processing lines
Fruit juice, tea and foodstuff processing lines
Dairy production lines
Beer production lines
Vaccum packaging machine
Automatic food filling machine
Spray dryer system
Sterilizer system, etc
Located at huangdu industry area of Shanghai, we are professional in developing, manufacturing and selling fruit and vegetable processing lines over 30 years. All the fruit and vegetable processing lines are scientifically designed, with GMP standard and passed quality system of ISO9001-2008.
We are good at tendering the tunrkey project with fabrication, installation, comissioning and operator training. So far, We have tendered turn-key projcet to Gambia, Libya, Colombia, Japan, Vietnam, Thailand and other regions.
