Application: 1-WAY 2-POSITIONs, Normal close, Widely used in medical device, massage equipment, beautify machines, etc,
The pump is made strictly under ISO System control, and make 100% inspection before shipment.
The delivery time will be arranged according to Customers specific requirement.
|

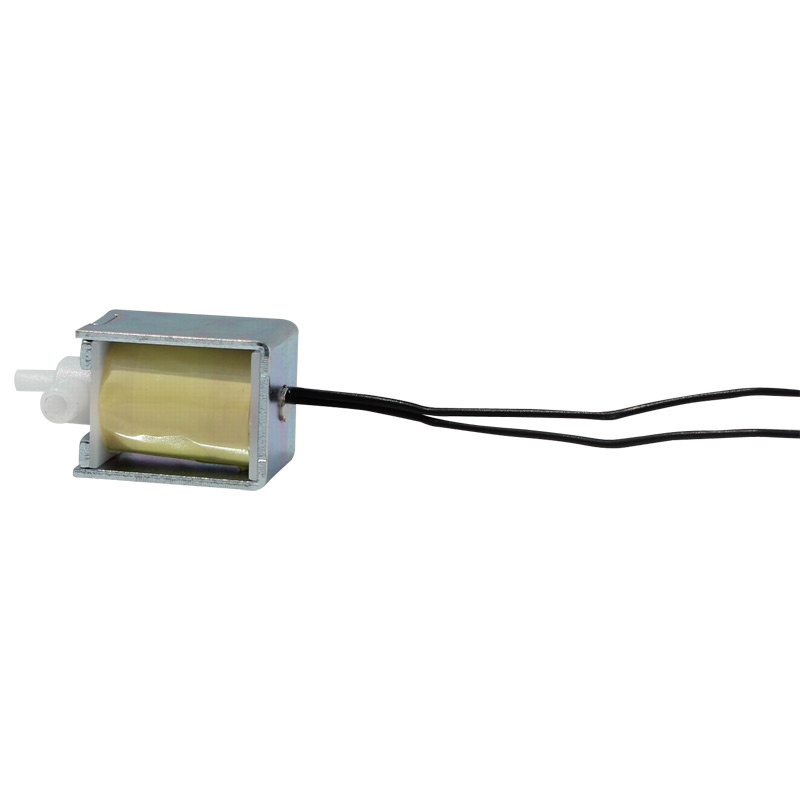

AJK-F0505 |
|
Rated Voltage |
DC 12.0V |
DC 24.0V |
|
Rated Current |
270mA |
135mA |
|
Resistance |
45Ω±10%( room temperature 25°C) |
180Ω±10%(room temperature25°C) |
|
Power |
3.25W |
3.25W |
|
Working Pressure |
>350mmHg |
|
Leakage |
< 5mmHg/m |
|
Exhaust Speed |
< 3 seconds ( time to reduce air pressure from 300mmHg to 15mmHg in 500CC tank) |
|
Pipe |
Φ6 mm |
|
Dimension |
26*24*60mm |
|
Application |
1-way 2-position normal close, suitable for gas and liquid, strong oxidation resistance, widely used in water treatment, vegetable washer,disinfection cabinet and plastic swimming pool,etc.
etc. |
