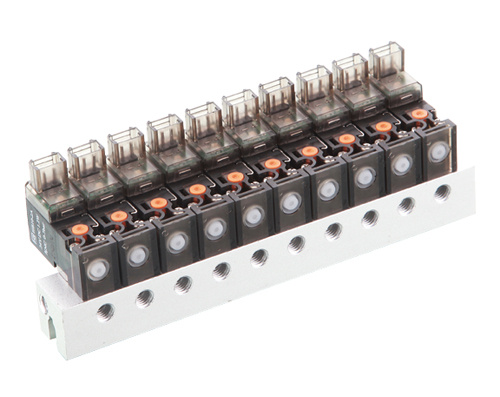

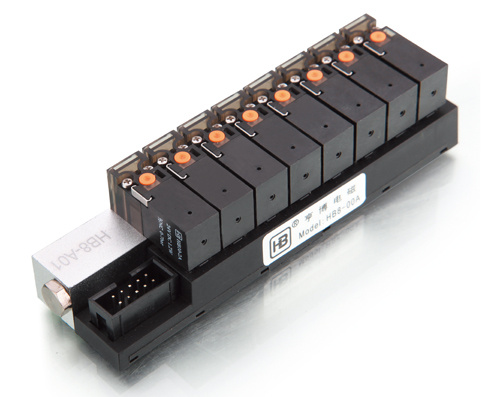

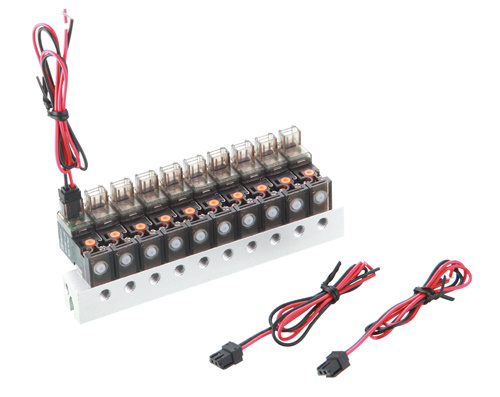

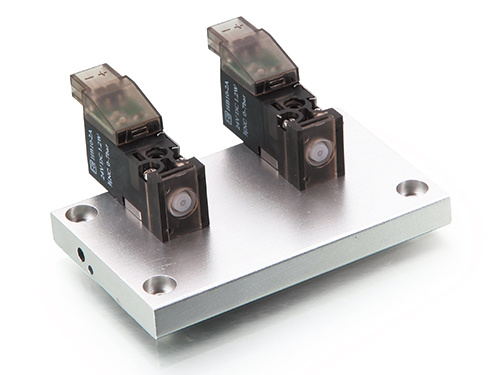

Miniature 3/2 Pilot Solenoid Valve Manufacturer
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
FEATURES1. Miniature pilot valves are one of the mostfundamental parts in hydraulic machineryas well and pneumatic machinery. They allowfluid flow into different paths from one ormore sources. It not only has a micro size,but it's very quiet when it works.
2. Low power consumption, fast repsonse,import oils seals with longer sevice life.
3. Coils with DIN connection or flying leads. SPECIFICATIONS| Model | XV10 |
| Operation Type | 3/2 |
| Working Medium | Filtered Air/Inertgases |
| Ambient Temperature | -10~75 ºC |
| Working Pressure | 0-7bar |
| Orifice size | ¦Õ0.7mm, ¦Õ1.0mm, ¦Õ1.2mm |
| Wiring/Connector | L/M type |
| Stand Voltage | DC24V/12V |
| Power | 1W/1.2W double power |
| Insulation | H Class |
| Service life | > 50 million times |
| Instruction light | LED |
| Operating Frequency | >30Hz |
| Operating Voltage Tolerance | +/- 10% |
| Response Time | 6-8ms |
| Protective Structures | Dust-proof |
ADVANTAGE 1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2) Aluminum Surface is polished and hard anodized.
3) To import Germany grease to provide firm less-friction support
4) O-ring is imported from Taiwan.
5) 100% leakage testing under low pressure and high pressure.
6) 1 year quality assurance after shipment.
7) After sales technique support
Oxygen Concentrator Valve
Inkjet Printer Valve
Carpet Machine valveWHY CHOOSE US? 1) We offer one stop solution. Over 5000 items for you to save efforts and costs. 2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function. 3) We will reply you within 24 hours. 4) Whatever quantity you are requesting, we always offer you the best quality. 5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder. FAQ PackingTransparent plastic bag + white small box + neutral carton + palletCustom packaging are available, XHnotion brand packaging are available Shipping :Export port: Ningbo or Shanghai, ChinaShipping way: by sea, by air, by courierDelivery time 3 days to 30 days depends on actual orders. Payment TermsWe accept T/T, L/C, Paypal, western union,etc. Samples PolicyFor regular valve 1 pcs, free samples against your courier account or you pick up from us.For custom items, we will discuss by email. Return Policy: We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
| Prod Model: |
XV10-10F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread: |
1/8,1/4 |
| Regular Voltage: |
12VDC, 24VDC, 110VAC, 220VAC |
| Flow(CV): |
0.23 |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
| Material: |
Aluminum |
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below items
Pneumatic fittings, plastic, brass, stainless steel push in fittings
Pneumatic quick coupling, air tool kits, air blow gun
Pneumatic muffler, silencer, filter
Air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
Solenoid control valve for water, air, diesel, oil
Air cylinder, air preparation, pneumatic directional valve
Modular hose, water push in fitting
Ball valve, brass connector
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder
Our production is strictly under the control of ISO9001: 2000, and many products get CE approval. Since founded in 1997, we have marketed over 70 countries and firmly established our reputation for the excellence of our design, quality, service and pricing.
