Disk Vacuum Filter is applicable to geological, metallurgical, building material, mining and other industries for mineral dewatering after flotation, gravity concentration, magnetic separation and other operations in tests on mineral separability and separation of solid-liquid in sample testing. It mainly comprises vacuum pump, moisture air filter, vacuum negative pressure tank and two filter trays with automatic drainage device to be provided to separate solids from liquids. The product is made by the only manufacturer designated by the former ministry of geology and mineral recourses, in compliance with the industrial standards.

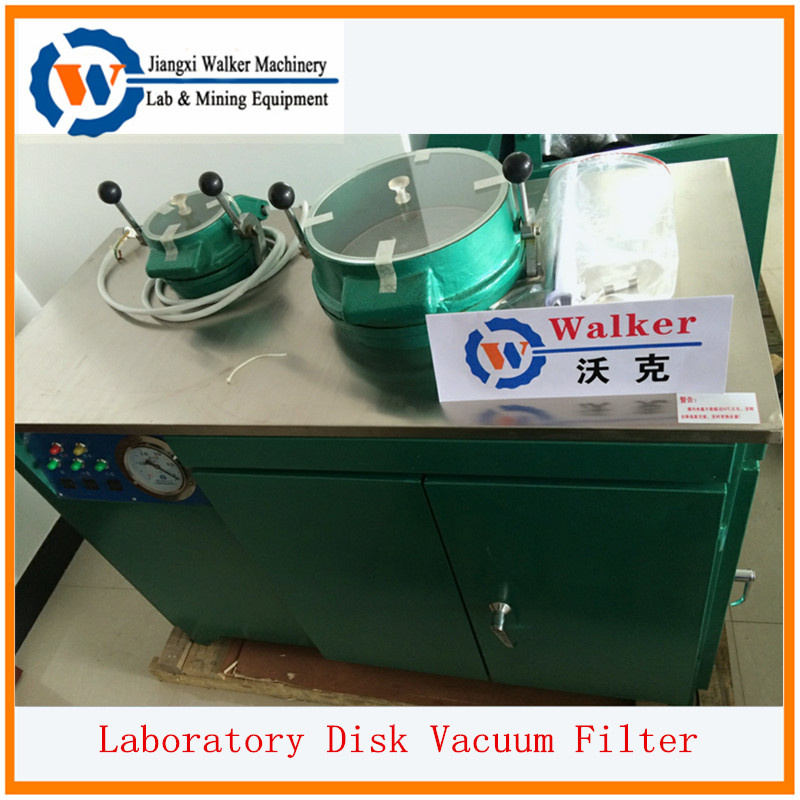

Lab disk vacuum filter Structure:
ZL-260/200 disk vacuum filter has two filter disks with different capacities. Slurry of different amount can be directly fed into the disk with corresponding capacity for dewatering. The vacuum system is mainly composed of rotary vane vacuum pump, water-separating gas filter, vacuum negative pressure jar, electromagnetic valve, and vacuum duct.
Lab disk vacumm filter working principle:
Within around 10s after the vacuum pump is started, make a vacuum capacity with the pressure of not lower than 91.2kpa (684mm mercury column) in the vacuum negative pressure jar. Then connect the electromagnetic valves 3 and 5. Under the action of pressure difference, the liquid in the filter disk permeates into the filter paper very quickly, so that the purpose of the dewatering can be served.
Our lab disk vacumm filter structure features and advantages:
This equipment has simple and compact structure, reliable operation of vacuum system, and high vacuum degree.
To prevent the liquid in the vacuum negative pressure jar from entering the vacuum pump, upper and lower connection points are designed for this machine. When the liquid reach the preset height, the vacuum pump stops working automactically. At the same time, open the air-release valve. It starts up automatically after the liquid is discharged.
|
Model |
ZL-260/200 |
DL-5C |
|
Disk diameter |
Big disk260mm small disk200mm |
Big disk 240mm small disk120mm |
|
Disk capacity |
Big disk capacity 3.6 litre,small disk 0.64 litre |
Big disk capacity 4.2 litre,small disk capacity 2.5 litre |
|
Feed density |
10%-30% |
|
Feed size |
0.5mm |
|
Filter sample weight |
Big disk weight<500gram,small disk weight<100gram. |
|
Filter time |
General material 5-10mins |
|
Cake moisture |
General material <26% |
|
Vacuum pressure |
No less than 91.2Kpa(684mmHg) |
|
Voltage |
380v Three-phase four-wire power supply |
|
Power consumption |
1.5KW |
|
Overall dimension |
1038*420*970 length*width*height |
|
Weight |
160kg |
