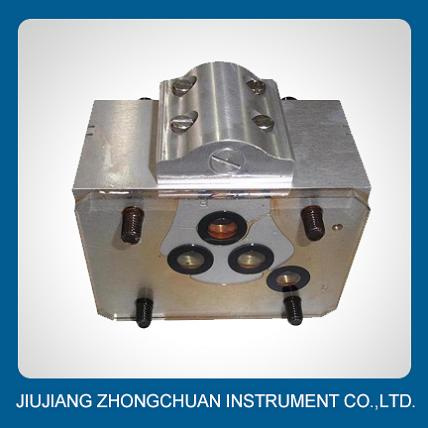

SDYG631 series servo valve is our company's new product which could replace MOOG G631. It's a perfect replacement for MOOG G631.
Main Technical Index
1. Type: SDYG631-5/10/20/40/60/75
2. Rated current: ± 50mA/ ± 100mA
3. Resistance of coil: 14Ω/ 28Ω /56 Ω
4. Rated pressure: 21MPa
5. Supply pressure: 1.4-31.5MPa
6. Rated flow: 5/10/20/40/60/75 L/min
7. Rated flow tolerance: ± 10%
8. Hysteresis: ≤ 5%
9. Linearity: ≤ 7.5%
10. Symmetry: ≤ 10%
11. Threshold: ≤ 1%
12. Null shift: ≤ 4%
Jiujiang Zhongchuan Instrument Co., Ltd(441 Plant) is founded in year 1959, part of CSSC which specializes in producing navigation equipments as autopilot, gyrocompass, 15ppm bilge water alarm and steering engine & electro-hydraulic control servo valve.
We are a large manufacturer, with more than 1000 competent workers and nearly 600 excellent R&D team. Our business also covers nautical products and marine communication equipment as radios, marine sextant, and magnetic compass, etc.
Holding the belief that "quality the first, customer the highest", we are working to be the best supplier you want. Your trust, that's our goal! Your satisfaction, that's our job!
