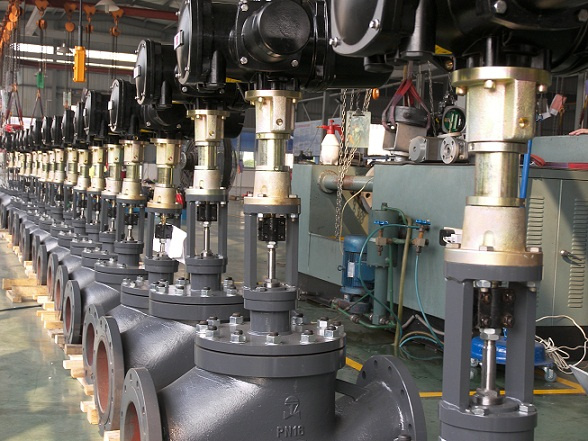

Motor-driven, electric heavy duty valve
ZMK/ ZNK/ ZKK HIGH PRESSURE CONTROL VALVE
This series is a successful self-research product, mainly to meet the need of the power plant, especially for 300/600MW large-scale thermal power generation equipment, oil and chemical plant.
There are ZMK(pneumatic high pressure regulating valve), ZKK(electric high pressure valve), ZNK(high pressure regulating by hand).
DN(mm)20~250 (3/4"~10);
PN(MPa)1.6\4.0\6.4\10.0 (ASME Class 150/300/400/600);
Working temperature: 250~400celsius.
Flow characteristic: Equal percent, linear.
The key technology of ZKK ZNK-type high-pressure regulating valve is the inside valve trim structure and its manufacturing technics.
According to the spot condition, there are two types of trim are available, full-stack-plate valves (Figure 1) and the other one is stack plate and the window-shaped sleeve of the modular structure (Figure 2).
Two kinds of structural forms, the former is applied in high-pressure differential occasions system such as the power plant or chemical industry and high-pressure differential occasion upon small opening.
The latter in medium and high pressure occasion upon normal opening when pressure differential is not large.
Anti-air erosion of high-pressure differential control valve body (Figure 3)
Please contact us for more details if you have any interesting.
