stainless steel 24v motorized valve
Media |
water, oil, steam, liquid etc. |
Medium Temperature |
-10°C~180°C |
Pressure |
0.3~2.5Mpa |
Material |
stainless steel or steel |
Port size |
1/2″~ 3″ |
Orifice |
DN15~ 80 |
The plate of Butterfly valve |
stainless steel or steel |
Electric head |
types of switch, regulation, opening output signal |
Seal |
PTFE, NBR |
Voltage tolerance (AC) |
±10% |
Voltage tolerance (DC) |
±1%
|
Size: 1/4 -4
Pressure: Class150LB-1500LB
Material: WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L
Design & Manufacture Std.: API608,ASME B16.34
Threaded End: G, NPT, BSP, BSPT, DIN259/2999
Butt-weld End.: ASME B 16.25
Socket End: ASME B16.11
Mounting pad: ISO5211
Test Standard: API598
Structure Type: Three-piece Floating type,Full bore
Operated way: Lever, Pneumatic, Electric

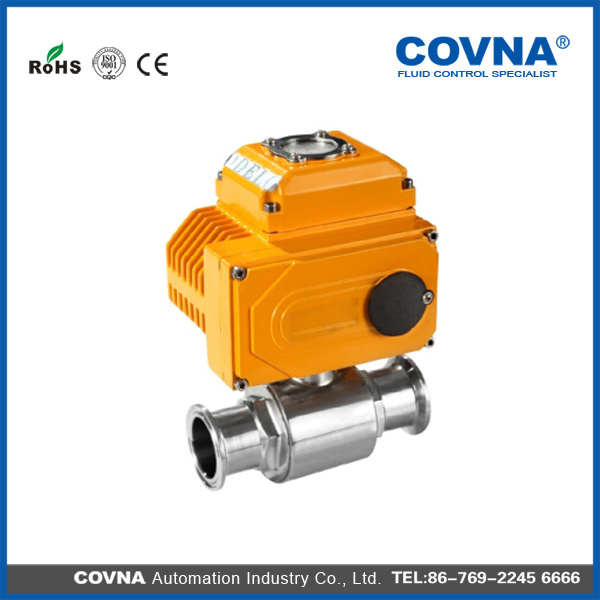

Full Port 3 piece Stainless Steel Motorized Ball Valve
1/4" through 4" NPT
Direct Mount for Low-Profile,
Cost-Efficient Operations
Electric and Pneumatic Actuators
NPT, socket weld or butt weld end
Vacuum rated to 29 inHg
Our company specializes in the production of solenoid valve and pneumatic valve on pipeline fluid. COVNA, original brand, runs its business around the world and its quality awards ratification through competing with European countries, the United State, Japan and other major industrial countries in the international market.
By far, export production ranks first in the country with its sale throughout the country in the field of two position two way solenoid valve. Since the general manager has entered into the industry of valve, pipeline fluid automation and labor saving, he has hold the Three First Business Philosophies of quality first, service first, and credit first all the time. It makes the quality and output of our products advance at an equal pace with them from Europe, the United State and Japan in the international market. With reasonable price, even the medical device industry in France, Spain and other countries install our products, COVNA solenoid valves.
