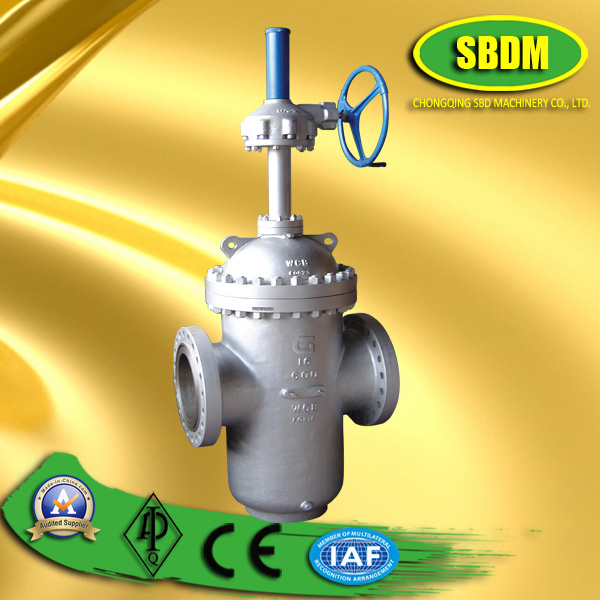

Motorized Cast Steel Flat Gate Valve - Product Features:
PRODUCT RANGE
Class 150 from 2'' to 48''
Class 300 from 2'' to 48''
Class 600 from 2" to 48"
Class 900 from 2" to 48"
MATERIALS
BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys, ...Other materials under request
TECHNICAL SPECIFICATION
Design and Manufacture: API 600(ISO 10434) or API 6D
Inspection and Test: API 598, API 600 or API 6D
End flange dimension: ASME B16.5(for NPS≤ 24), ASME B16.47 series B, API B16.47 series A, MSS SP-44(for NPS>24)
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
Pressure-temperature: ASME B16.34
APPLICATION
Refinery
Chemical
Petrochemical
APPLICATION Power plant
Gas
CERTIFICATES
SBDM is one of high-tech manufacturer of valves and oil purifier machine, including R&D, manufacturing, sales and service.
We manufacture API6D BALL VALVE, API600 GATE VALVE, BS1868 CHECK VALVE AND BS1873 GLOBE VALVE. We also provide high quality oil purifier machine.
