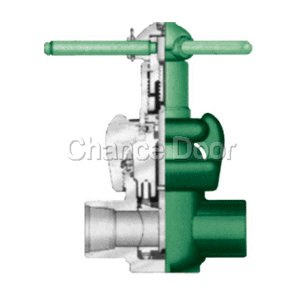

The Mud Gate Valve, with superior design features precision workmanship and a proven principle are engineered to meet the harsh drilling requirements in today's oilfield.
The Valve conforms to the standard flange dimensions and pressure rating of 3000 and 5000 PSI working pressure, and temperature service up to 400 F.
The Valve standard trim includes 316SS Gates 316SS Stems and Buna N seats, optional trims are available which include Ni Plated Carbon Steel, Monel and Aluminum Bronze gates. Seats are offered in Viton and Hypalon and optional 303SS Stem is available.
CONSTRUCTION
All the Valves conforms to API flange dimensions in all pressure class ratings. The valves have rising stems that are driven by a double threaded hub for quick opening and closing with minimum turning effort. The permanently lubricated stems and stem screws are fully sealed assembly consisting of homogenous and fabric backed rings for high and low pressure sealings.
APPLICATION FOR THE GATE VALVE
Mud pump lines and Standpipe manifolds, Oil and gas pipelines, Sour gas and crude oil, Corrosive water flood lines, Cementing services, Wellheads, Well treating chemicals.
APPLICATION
Drilling and well-treating chemicals
Sour gas and crude oil
Abasive drilling mud
Pipelines and manifols
Wellheads
Water, oil and gas lines
Cements and slurries
Corrosive water flood lines
Up to 5000psi and 400º F Fahrenheit services
| 4 ″ , 5 ″ × 4 ″ -5000WP PARTS LIST |
|
|
|
| Item | Component | Qty | Material |
| 1 | Lube Fitting | 1 | Assy. |
| 2 | Handle Assy. | 1 | Steel |
| 3 | Tube | 1 | Clear Acrylic |
| 4 | Stem Cap | 1 | Ductile Iron |
| 5 | Key | 1 | Steel |
| 6 | Stem Screw | 1 | Steel |
| 7 | Stem Screw Seal | 1 | NBR |
| 8 | Screw Housing | 1 | Steel |
| 9 | Stem | 1 | 410 |
| 10 | Secondary Seal | 1 | NBR |
| 11 | Retainer | 1 | Steel |
| 12 | Stem Seal Assy. | 1 | Assy. |
| 13 | Bearing | 2 | TEFLON |
| 14 | Down Stop Ring | 1 | Steel |
| 16 | Bonnet | 1 | 4130 |
| 18 | Bonnet Seal | 1 | NBR |
| 19 | Gate | 1 | 410 |
| 20 | Body | 1 | 4130 |
| 21 | Seat | 1 | Steel+NBR |
| 23 | Bonnet Stud | 2 | 4140 |
| 24 | Bonnet Stud Nut | 2 | 1045 |
| 25 | Body Stud | 4 | 4140 |
| 26 | Body Stud Nut | 4 | 1045 |
| 2 ″ , 3 ″ , 4 ″ -3000WP & 2 ″ , 3 ″ -5000WP PARTS LIST: |
|
|
|
|
|
|
|
| Item | Component | Qty | Material |
| 1 | Lube Fitting | 1 | Assy. |
| 2 | Hub Assy. | 1 | Steel |
| 4 | Lock Handle | 1 | Steel |
| 6 | Stem Screw | 1 | Steel |
| 7 | Stem Screw Seal | 1 | NBR |
| 8 | Stem Housing | 1 | Steel |
| 9 | Stem | 1 | 410 |
| 10 | Secondary Seal | 1 | NBR |
| 11 | Retainer | 1 | Steel |
| 12 | Stem Seal Assy. | 1 | Assy. |
| 13 | Lock Screw | 1 | Steel |
| 15 | Coupling | 1 | 4130 |
| 16 | Bonnet | 1 | 4130 |
| 17 | Index Pin | 1 | Steel |
| 18 | Bonnet Seal | 1 | NBR |
| 19 | Gate | 1 | 410 |
| 20 | Body | 1 | 4130 |
| 21 | Seat | 1 | Steel+NBR |
| 22 | Lock Handle Pin | 1 | Steel |
| 23 | Bonnet Stud | 2 | 4140 |
| 24 | Bonnet Stud Nut | 2 | 1045 |
| 25 | Body Stud | 4 | 4140 |
| 26 | Body Stud Nut | 4 | 1045 |
