| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Piece |
| Pay Type: | T/T,Western Union |
| Foshan Clitech Air-conditioning Equipment Co.,Ltd(Foshan ) | |||||

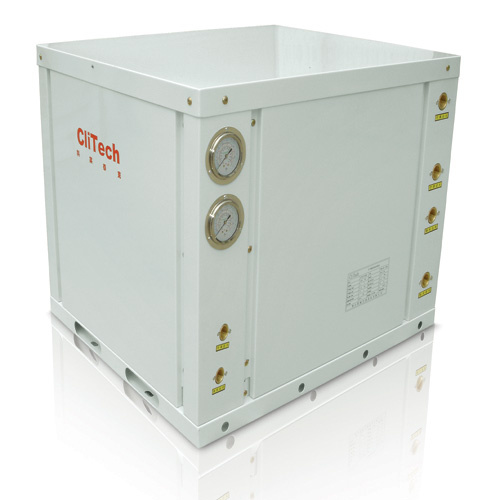

| ground source heat pump (Cooling ,heating and hot water) | |||||
| Model | unit | CWM-12XB | |||
| specification | Sanitary hot water working condition | Rated heating capacity | kW | 10.5 | |
| BTU/h | 35826 | ||||
| hot water supply | T/h | 0.23 | |||
| Rated heating input power | kW | 2.25 | |||
| rated heating input current | A | 11.25 | |||
| COP | 4.67 | ||||
| cooling for AC | cooling capacity | kW | 8.5 | ||
| BTU/h | 29002 | ||||
| cooling input power | kW | 1.9 | |||
| cooling input current | A | 9.5 | |||
| EER | 4.47 | ||||
| heating for AC | heating capacity | kW | 9.5 | ||
| BTU/h | 32414 | ||||
| cooling input power | kW | 2.6 | |||
| cooling input current | A | 12.8 | |||
| COP | 3.65 | ||||
| cooling&heating working condition | average cooling capacity | kW | 7.4 | ||
| BTU/h | 25249 | ||||
| Average heating capacity | kw | 9.2 | |||
| BTU/h | 31390 | ||||
| Hot water supplyer | T/h | 0.20 | |||
| Average input power | kW | 1.88 | |||
| Acerage input current | A | 9.4 | |||
| EER+COP | 8.83 | ||||
| Max running current | A | 17.1 | |||
| Power supply | V/Ph/Hz | 380V/3N/50Hz | |||
| The rated outlet water temp | ºC | 55 | |||
| The max outlet water temp | ºC | 60 | |||
| Nosie | dB(A) | 53 | |||
| Dimension | width | mm | 680 | ||
| deepth | mm | 800 | |||
| height | mm | 720 | |||
| weight | kg | 135 | |||
| wire controller | type | Many color LCD backlit wire, can accept panel buttons and infrared remote control | |||
| main function | Working mode control, independent working temperature setting, status display, timer switch machine Settings, key lock function, colorful backlit, etc | ||||
| remote monitoring | type | Remote monitoring system/can choose configuration | |||
| Refrigeration circulation structure | Refrigeration circulation quantity | 1 | |||
| throttle type | The equilibrium thermal expansion valves | ||||
| refrigeration | Type | R410A | |||
| refrigerant charge | kg | 1.7 | |||
| Max working pressure | bar | 41.5 | |||
| compressor | Type | rotary/scroll | |||
| locked-rotor current | A | 90 | |||
| safe protect function | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | ||||
| hot water side heat exchange | type | Efficient shell and tube heat exchanger | |||
| fluid | 100 percent water | ||||
| qty | piece | 1 | |||
| water flow | m 3 /h | 1.81 | |||
| water presure down | kPa | 10 | |||
| pipe size | inch | 3/4 | |||
| water side max working pressure | kPa | 1000 | |||
| water source side heat exchange | type | Efficient sleeve and tube heat exchanger | |||
| fluid | 100 percent water | ||||
| qty | piece | 1 | |||
| water flow | m 3 /h | 0.81 | |||
| water pressure | kPa | 10 | |||
| pipe size | inch | 3/4 | |||
| water side max working pressure | kPa | 1000 | |||
| air-condition side heat exchange | type | Efficient tube and tube heat exchanger | |||
| fluid | 100 percent water | ||||
| qty | piece | 1 | |||
| water flow | m 3 /h | 1.46 | |||
| water pressure down | kPa | 10 | |||
| pipe size | inch | 3/4 | |||
| water side max working pressure | kPa | 1000 | |||
| Rated hot water working condition: water-source side water inlet temp is 15ºC. inital temp of hot water is 15ºC, termination temp of hot water is 55 ºC. rated cooling working condition: water-source side water inlet temp is 18ºC, inlet temp is 29ºC. Use-side water inlet temp is 12ºC, outlet temp is 7ºC . rated heating working condition rated heating: water-source side water inlet temp is 15ºC. Use-side water inlet temp is 40ºC , water flow the same to summer water flow. cooling with heating working condition: inital temp of hot water is 15ºC, termination temp of hot water is 55ºC. air-condition water side water inlet temp is 12ºC, outlet temp is 7ºC | |||||
| Prod Model: | CWM-12 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: | 680mm*900mm*720mm |
| Weight: | 135kgs |
| Cop: | 4.67 |
| Regrigerant: | R410 |
| Brand: | Clitech |
| Power Supply: | 380V/3pH/50Hz |
| Noise Level: | 53 |
| Heating Capacity: | 11kw |
| Mode: | Cwm-12xb |
| Heat Exchanger: | Tube in Tube |
| Heat Temperature: | 50-70??C |
| Work Environment: | Common Heat Pump |
| Heat Source: | Ground-source |
| Application: | Office Building ,Restaurant |
| Certification: | CCC |
