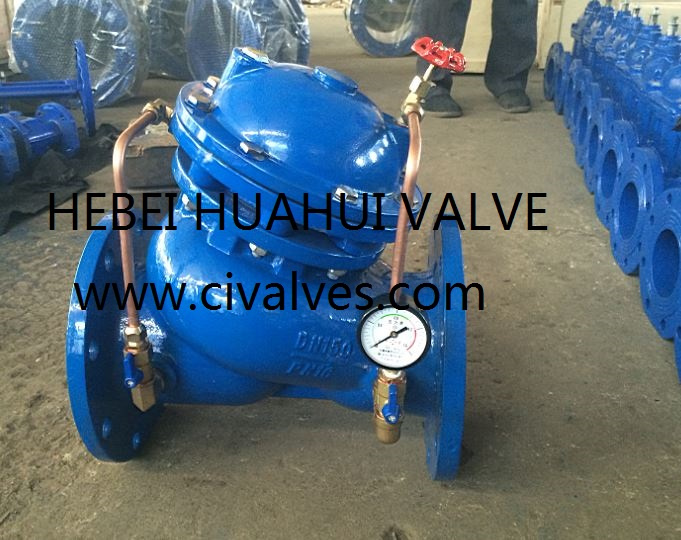

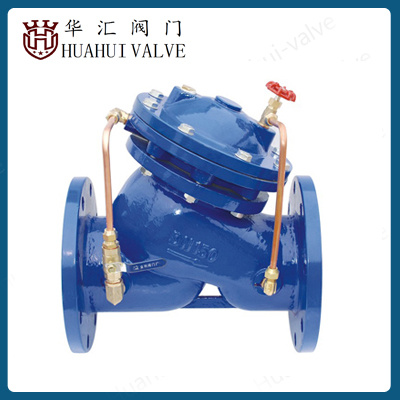

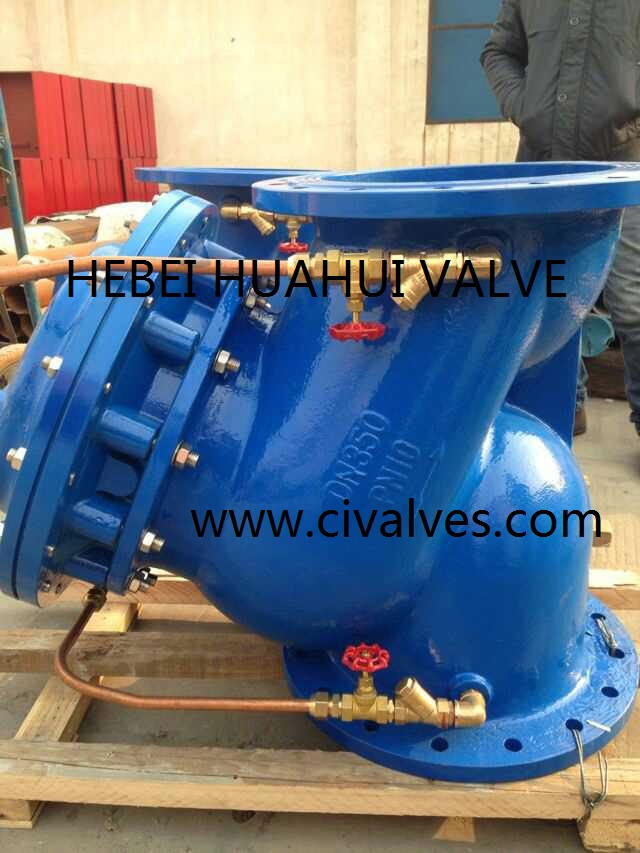

Multifunctional water pump control valve
1. This valve is mainly used for water supply and transport system in municipal projects, high-rises, mines and factories etc., as well as the water supply and drainage system of submerged sewage pump room. Integrating the functions of electric valve, check valve and water hammer eliminator, this valve greatly improves security and dependability to meet the requirements of system automation.
2. This valve is provided with three types of structure to eliminate water hammer including quick shut, slow shut and absorbing chamber, with actions completely linked without errors. When pump is started or stopped, it can use mediums at the two ends of valve and their pressure difference as driving mediums and control power, making valve automatically interconnected according to the operating regulations of pump, and not affected by pipeline pressure and flow wave.
|
DN(mm) |
L(mm) |
D(mm) |
C(mm) |
B(mm) |
n-d |
|
|
|
PN1.0Mpa |
PN1.6Mpa |
PN1.0Mpa |
PN1.6Mpa |
PN1.0Mpa |
PN1.6Mpa |
PN1.0Mpa |
PN1.6Mpa |
|
DN50 |
235 |
160 |
125 |
99 |
4-Φ19 |
|
DN65 |
255 |
180 |
145 |
119 |
4-Φ19 |
|
DN80 |
275 |
195 |
160 |
133 |
8-Φ19 |
|
DN100 |
285 |
215 |
180 |
154 |
8-Φ19 |
|
DN125 |
325 |
245 |
210 |
184 |
8-Φ19 |
|
DN150 |
375 |
280 |
240 |
210 |
8-Φ23 |
|
DN200 |
430 |
335 |
295 |
265 |
8-Φ23 |
12-Φ23 |
|
DN250 |
490 |
400 |
350 |
355 |
319 |
12-Φ23 |
12-Φ28 |
|
DN300 |
580 |
445 |
400 |
410 |
370 |
12-Φ23 |
12-Φ28 |
|
DN350 |
665 |
515 |
460 |
470 |
429 |
16-Φ23 |
16-Φ28 |
|
DN400 |
695 |
575 |
515 |
525 |
480 |
16-Φ28 |
16-Φ31 |
|
DN450 |
750 |
635 |
565 |
585 |
548 |
20-Φ28 |
20-Φ31 |
|
DN500 |
810 |
710 |
620 |
650 |
609 |
20-Φ28 |
20-Φ34 |
|
DN600 |
895 |
835 |
725 |
770 |
780 |
20-Φ31 |
20-Φ37 |
