APPLICATIONS: For domestic and industrial applications, irrigation and hydropneumatic sets.

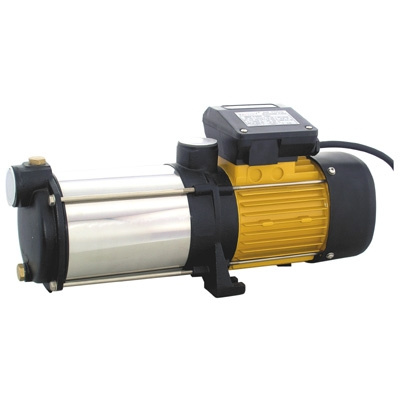

Quiet running multistage centrifugal pump. Built-in self priming valve, not very sensitive to the impurities. Self-priming up to 8 m.
PUMP
--- Delivery up to 170l/min (10.2 m3/h).
--- Head up to 75m.
--- Temperature of pumped liquid: 0-40 C
--- Maximum operating pressure: 8.0 bar.
MOTOR
--- Asynchronous, two poles.
--- Protection class: IPx5.
--- Class F insulation.
--- Single phase version 220-240V 50Hz with automatic reset overload protection.
--- Three phase version: 220-240V/380-415V 50Hz, the overload protection must be provided and installed by the user in the control panel.
--- Maximum ambient temperature 40 C
MATERIALS
--- Suction/discharge mounting in Cast Iron (Casting brass are available).
--- Pump Housing in SUS 304 stainless steel.
--- Diffussor in PPO (Noryl® )
--- Impellers in PPO (Noryl® ) (SUS 304 Stainless steel are available).
--- Motor Shaft in SUS 416 stainless steel (Carbon Steel and SUS 316 Stainless steel are available)
--- Mechanical seal with Ceramic/graphite, NBR elastomers, other parts are made of SUS 304 stainless steel.
--- O-Ring made of NBR ( EPDM are available).
OPTIONAL FEATURES
--- Different voltages and frequencies.
--- Different materials for the mechanical seal.
|
PERFOMANCE DATA AT n=2850 min |
|
|
|
|
PUMP MODEL |
INPUT |
OUTPUT |
Q m3/h |
0 |
1.2 |
2.4 |
3.6 |
4.8 |
6 |
7.2 |
8.4 |
9.6 |
10.2 |
|
KW |
KW |
HP |
l/min |
0 |
20 |
40 |
60 |
80 |
100 |
120 |
140 |
160 |
170 |
|
MH170 2M |
1.00 |
0.75 |
1.00 |
H (m) |
25 |
24 |
23 |
20 |
17 |
13 |
10 |
6 |
2 |
0 |
|
MH170 3M |
1.40 |
1.00 |
1.40 |
37 |
36 |
35 |
32 |
28 |
23 |
18 |
12 |
6 |
2 |
|
MH170 4M |
1.80 |
1.35 |
1.80 |
50 |
49 |
46 |
43 |
38 |
32 |
25 |
17 |
9 |
5 |
|
MH170 5M |
2.20 |
1.65 |
2.20 |
62 |
60 |
58 |
54 |
48 |
42 |
34 |
25 |
15 |
10 |
|
MH170 6M |
2.80 |
2.10 |
2.80 |
75 |
73 |
70 |
65 |
58 |
50 |
42 |
32 |
21 |
15 |
