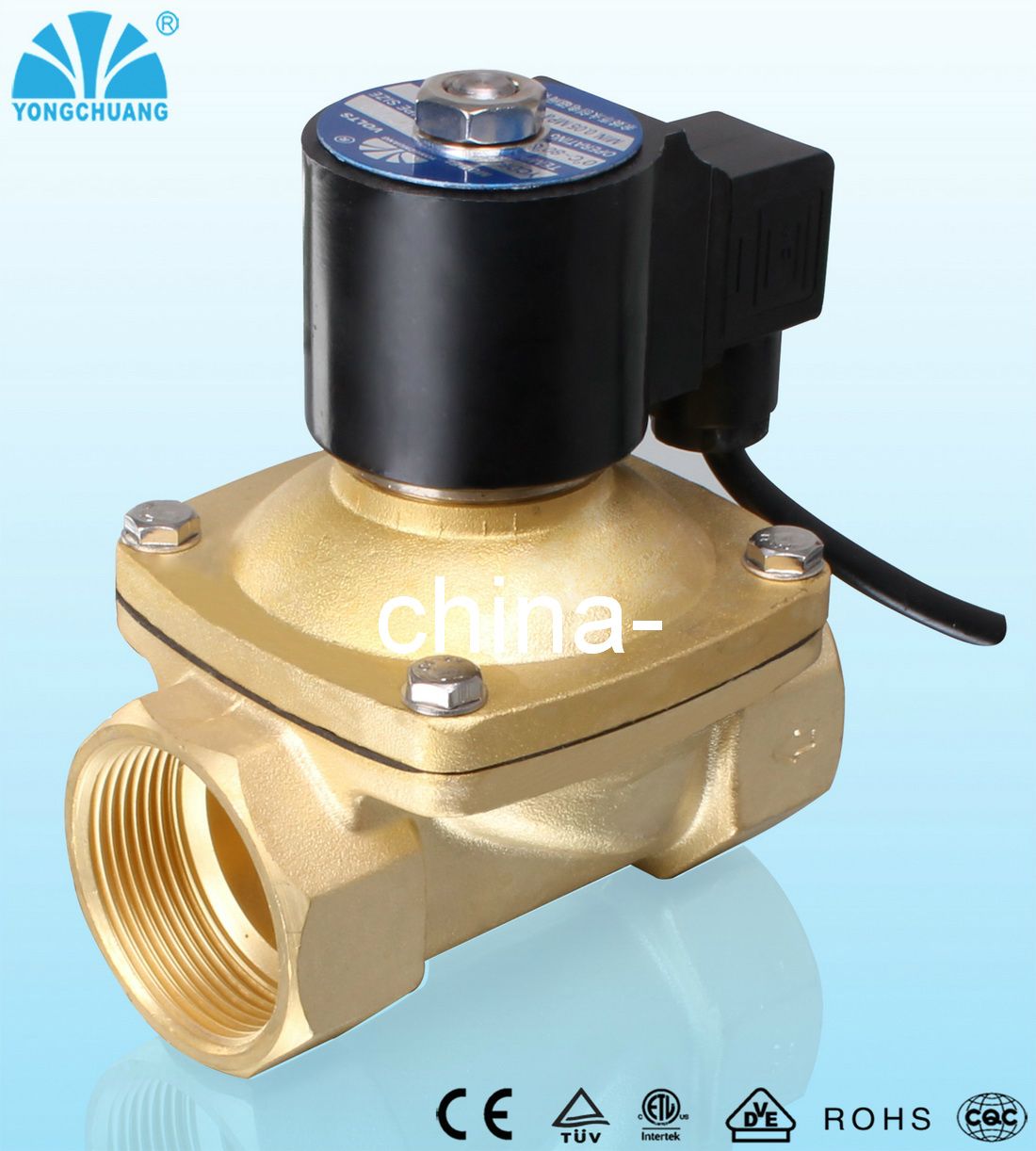

musical fountain solenoid valve
1. Parameter:
YCDF1 series normally closed musical fountain solenoid valve
Characteristic
1.Diaphragm constructure for fountain use with water proof coil
2.Open speed at 10 times per second
Temperature
NBR: -10°C to 80 °C
EPDM: -10°C to 120 °C
VITON:-10°C to 150 °C
Orifice
12,15,20,25,32,40,50,65,80,100,125mm
Voltage
DC-12V,24V
AC-24V,120V,240V/60HZ,110V,220V/50HZ
Coils
F14B,26VA(AC),13W(DC) IP65,100% ED
Material
Body- brass or cast iron
Seal- NBR,EPDM,VITON
Amature tube-stainless steel 304
Plunger-stainless steel430F
Stop-stainless steel 430F
Springs-SS304
Shading rings- stainless steel 304
Our Certifications
Production Delivery
Products will arrive to your office in 7~15 days after the payment is finished.
We will dispatch the valves by DHL, FedEx, TNT, UPS or by sea, it just depends on the weight of the products as well as your choice.
Our service
For OEM products
We will finish the production within 15 days after payment has been confirmed.cooperation with PARKER to improve our quality!
Warranty
Any question or problem will be respond within 24 hours.
One year guarantee:
One year since delivery.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send our technicist to you.
Quality control:
All the products are calibrated with real working condition, and 100%tested before shipping as qualified product.
Integrity:
All the warrenty and guarantee from us will be put into come true.
Detail Contact Information:
Name: Emily Yan
Tel: +86-574-62507206 FAX: +86-574-62505192
Cell: +86-13738891676
Thanks for your inquire!
You can according the below table to select type for yourself!
Port Size
|
Orifice
|
Cv
|
Min Pressure
|
Max Pressure
|
Seals
Material
|
Body
Material
|
Valve Body
|
Coil
|
AC(28VA)
|
DC(20W)
|
|
|
|
|
|
|
|
NBR,
EPDM,
or VITON,
|
Brass or
stainless
steel
|
|
|
1/2"
|
15
|
9.3
|
0. 03MPa
|
0.5MPa
|
0.5MPa
|
YCDF2115 X X X
|
F14B
|
3/4"
|
20
|
9.3
|
0. 03MPa
|
0.5MPa
|
0.5MPa
|
YCDF2120 X X X
|
F14B
|
1"
|
25
|
12
|
0. 03MPa
|
0.5MPa
|
0.5MPa
|
YCDF2125 X X X
|
F14B
|
1 1/4"
|
32
|
24
|
0. 03MPa
|
0.5MPa
|
0.5MPa
|
YCDF2132 X X X
|
F14B
|
1 1/2"
|
40
|
29
|
0. 03MPa
|
0.5MPa
|
0.5MPa
|
YCDF2140 X X X
|
F14B
|
2"
|
50
|
48
|
0. 0MPa
|
0.5MPa
|
0.5MPa
|
YCDF2150 X X X
|
F14B
|
Founded in 1998, Yuyao Yongchuang Solenoid Valve Co., Ltd. is a technical company specialized in designing and manufacturing solenoid valves, cylinders, flow meters, and heating air-conditioning control products. Our products have been widely applied in the automation of the fluid control.
We have three sales and service branches in Beijing, Guangzhou and Chengdu cities and our sales network covers more than 20 important cities. In 2000, our products merged into the North American market. Now, they have already expanded to different countries and regions in Europe, Southeast Asia and South America.
Since our establishment, we have been working with a clear aim ahead to provide high quality products and service to our clients. We have paid close attention to product development and innovation. From receipt of the firm order to release the items, we have serious procedure to control the quality, and offer the best service to our clients. There are specific persons in charge of providing technical expertise for quality problems and the quality control. There are procedures defining in process inspection and testing stages for the manufacturing process.
Concerning the global competition, we have import advanced equipment and invite many outstanding engineers to improve the product performance. According to the rough statistic, our total annual output is about 700, 000 valves. There are three production lines for industrial use valve, household appliances use valves and pneumatic cylinders.
Complied to ISO9001: 2000, we get the CE and TUV certificates and we can also offer high standard materials on the special request which conforms to our principles: Innovation, endless development; Individual solution for customer at best service; Attention to quality is one of our main guidelines.
We hope to develop the business of fluid control with more companies in the world, and we are convinced with our joint efforts the business will bring us a bright future.
