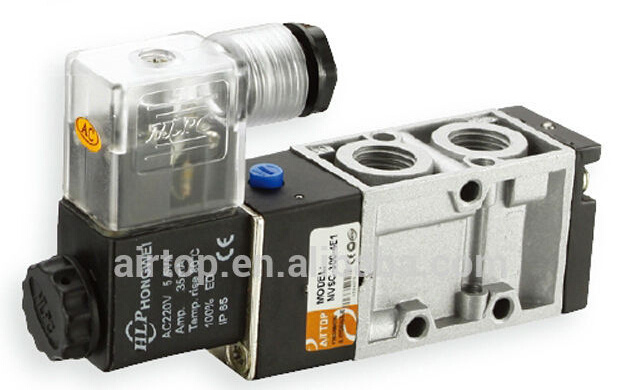

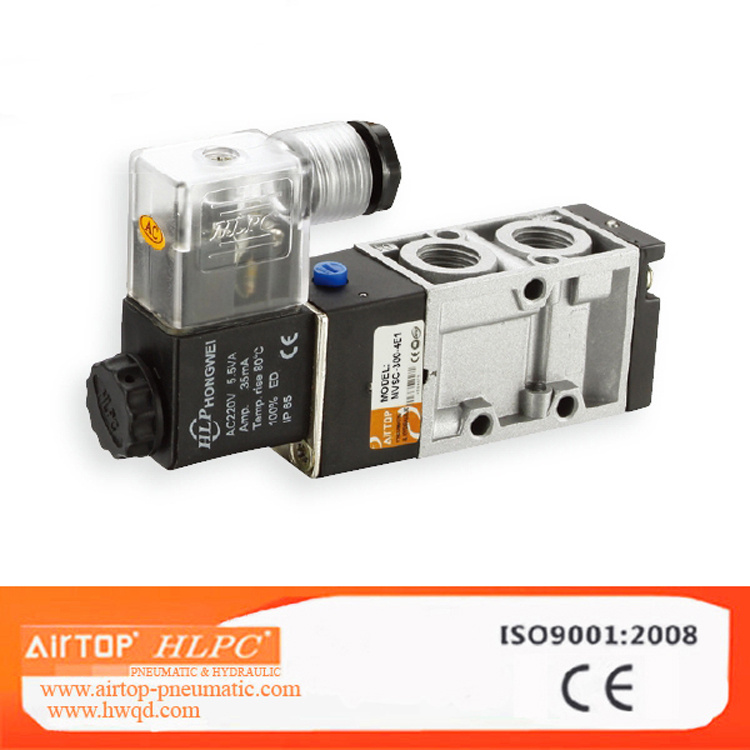

Mvsc 180-460 Series Pneumatic Directional Solenoid Valve

Mvsc 180-460 Series Pneumatic Directional Solenoid Valve
Price: US $ 1-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Ordering Code:

MVSC - 300 - 4E2C - AC110 - L

MVSC: Model MVSC/D-180-3E1, E2 MVSC/D-180-4E1, E2 MVSC/D-180-4E2C. P. R;

300: Body width 180 Series 220 Series 260 Series 300 Series 460 Series

4: Direction

E2: E1 = Single coil E2=Double coil A1=Single pneumatic A2=Double pneumatic;

C: Middle-position close P: Middle-position aerate R: Middle-position exhaust;

AC110: Pressure kind AC220V (50/60HZ) AC110V (50/60HZ) DC24V;

L: DIN Connector type L: With light type E: Explosion prevention type W: Outlet type;

Way number: 3 5;

Position number: 2 position;

Joint pipe bore size: G1/8;

Operating fluid: Air;

Working-pressure range: 1.5~8kgf/cm² 2~7kgf/cm² ;

Working-pressure range: 10kgf/cm² ;

Pressure pesistance: 12mm² 9mm² ;

Answer time: 30ms;

Around temperature: 5~50º C;

Orientation voltage: AC 110V, 220V(50/60) Hz, DC24V0;

Power consumption: AC=3.7/3.1VA DC=2.9W;

Allowed pressure range: ± 10%;

Insulation class: F/Class.



Prod Model: MVSC 180-460
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insolution Class: F Class
Connection Form: Thread
Application: Industrial Usage
Type: Solenoid Valve
Valve Structure: Aluminum
Power Supply: AC, DC
Standard: DIN, L, E, W
Pressure: AC110V, 220V, DC24V
Material: Aluminum
Ningbo AirTOP Pneumatic Hydraulic Co., Ltd.(AirTOP) specializes in manufacturing pneumatic and hydraulic components, including pneumatic cylinders, solenoid valves, directional valves, mechanical valves, FRL units, pneumatic fittings, PU tubes, air guns, power chuck, hydraulic cylinders, standard jaw etc.

Our factory - Hongwei Pneumatic & Hydraulic Kit Factory (HLPC) was established in 1988.Over twenty years' manufacturing experience in pneumatic and hydraulic field laid solid foundation for excellent quality.ISO9001:2008 Quality System and CE Certifications ensure every component to be precise, accurate and durable.

AirTOP has imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines, ultrasonic washing machines etc.Seals are from American Parker, Japan and Germany, pursing excellent quality and developing various products for global market.

Today, AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market.AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.

"Quality Reliable, Credit First, Customers Uppermost" is AirTOP's persistent and permanent pursuit.AirTOP will continuously provide our customers with the highest quality/price rate products and the best service, supporting our agents grow in this competitive world with the most favorable terms and making our end-users satisfied and assured by using our products.AirTOP sincerely hopes that we can keep up with the times of the development paces of pneumatic industry and world automation, continuously pursuing excellent quality and developing new products for our customers in the world automation industry.
