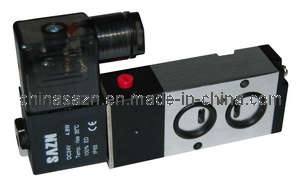

Namur Solenoid Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Namur solenoid valve:
1. Ways: Five ports two station
2. Port: G1/4, G1/8, G3/8
3. Applied pressure: 1.5-8kgf/cm2
|
Model |
4M210-06 |
4M220-06 |
4M210-08 |
4M220-08 |
|
Ways |
two positions three ways |
|
Port size |
inlet=outlet=1/8 |
inlet=1/4, outlet=1/8 |
|
Environment temp |
5-60 |
|
Effective area |
14mm2 |
16mm2 |
|
opprative pressure |
1.5-8.0 kgf/cm2 |
|
Max. pressure |
12kgf/cm2 |
|
body materail |
aluminium alloy |
|
Medium |
Clean air |
|
Max Working Frequency |
5 times/ per second |
|
Protection type |
IP65 |
|
consumption of power |
AC380: 2.5VA, AC220: 2.0VA, AV110: 2.5VA, AC24V: 3.5VA, DV24V: 2.0W, DC12V: 2.5W |
|
Model |
4M310-08 |
4M320-08 |
4M310-10 |
4M320-10 |
|
Ways |
two positions three ways |
|
Port size |
Inlet=outlet=1/4 |
Inlet=3/8, outlet=1/4 |
|
Environment temp |
5-60 |
|
Effective area |
25mm2 |
30mm2 |
|
opprative pressure |
1.5-8.0 kgf/cm2 |
|
Max. pressure |
12kgf/cm2 |
|
body materail |
aluminium alloy |
|
Medium |
Clean air |
|
Max Working Frequency |
5 times/ per second |
|
Protection type |
IP65 |
|
consumption of power |
AC380: 2.5VA, AC220: 2.0VA, AV110: 2.5VA, AC24V: 3.5VA, DV24V: 2.0W, DC12V: 2.5W |
| Prod Model: |
4M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
4m |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
DC Solenoid Valve |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
