Namur Valve
| Price: |
US $ 9/Piece |
| Trade Terms: |
others |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union |

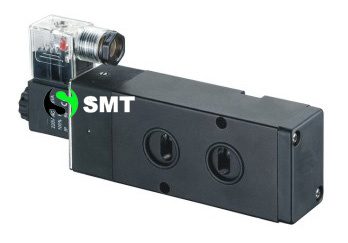

Airtac valve 4M310-08
1.ISO9001:2000, CE certificated
2.Ordering Code:4M310-083.Detailed description:
|
Model |
4V310-M5 |
4V310-08 |
4V320-M5 |
4V330C/E/P-M5 |
4V310-06 |
4V320-06 |
4V330C/E/P-06 |
|
Valve Type |
5 port 2 way |
5 port 3 way |
5 port 2 way |
5 port 3 way |
|
Effective Cross Section Area |
25mm 2 (CV=1.40) |
18mm 2 (CV=1.00) |
30mm 2 (CV=1.68) |
18mm 2 (CV=1.00) |
|
Port Size |
In=Out=Exhaust=G1/4" |
In=Out=G3/8" Exhaust=G1/4" |
|
Working Medium |
Air(to be filtered by 40μ filter element) |
|
Motion Pattern |
Inner guide type |
|
Working pressure |
0.15~0.8MPa |
|
Max.Test pressure |
1.2MPa |
|
Max.Ambient Temperature |
5~50 o C |
|
Operating Valtage Tolerance |
-10%~+10% |
|
Power Consumption |
AC:5.5VA DC:4.8W |
|
Insulation |
F Class |
|
Protection |
IP65 |
|
Wiring/Connector |
Lead wire or Connector type |
|
Max Frequency |
5 cycle/sec |
|
Response Time |
0.05 sec |
| Prod Model: |
4M310-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type': |
Normal Open and Normal Close |
| Size: |
1/8 to 1" |
| Pressure: |
0 to 8 Bar |
| Temperature: |
0 to 150 |
| Seal: |
NBR, Viton, Ptfm |
| Voltage: |
12, 24, 110, 220 |
| Type: |
Distribution of Direct Acting |
| Connection Form: |
Thread |
| Power Supply: |
AC Solenoid Valve |
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
