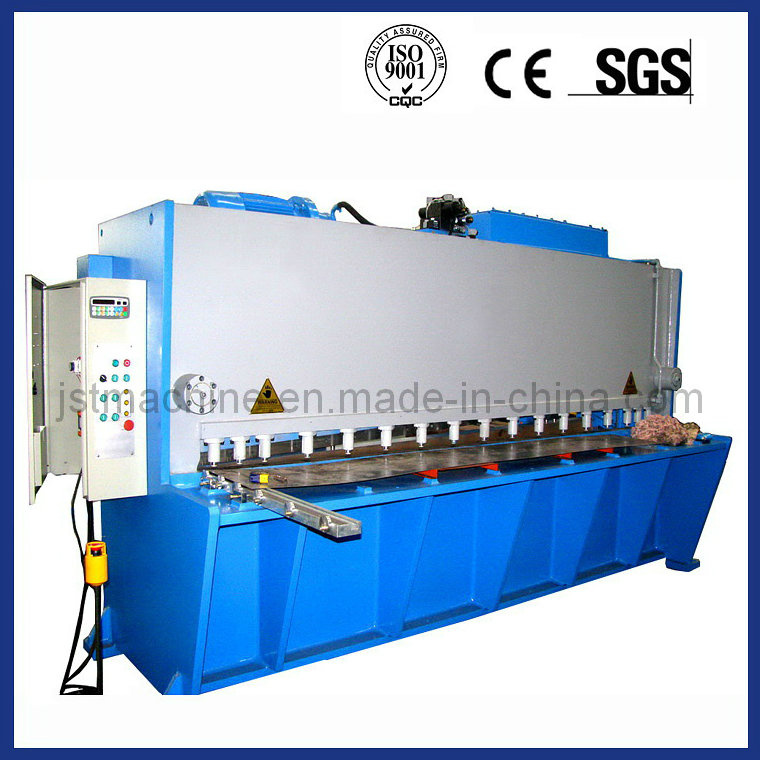

NC Hydraulic Guilotine Shearing Machine, Ras328 (Capacity: 8X3200mm) -China Supplier
Feathers:
> Variable rake angle adjustment (1-3o)
> Rapid Blade Gap adjustment.
> 4 Edge high carbon high chrome D2 Quality shear blade
> Front operated motorized back Gauge range to 750mm
> Shadow line & well designed finger guard for clear view of cutting line
> Safety foot switch operation Top blades will automatically return to top position when foot is removed from foot pedal
> 1 Metel Side squaring arm with disappearing stops
> Independent clamping of hold downs.
Pump -Vickers (USA)
Valve-Aron (Italy)
Hydraulic -Aron Design Manifaold+Valer
Fitting-Tubing-European Type
Electrical-Telemechanique-Schninder
Specification of the Hydraulic guillotine shearing machine:
| NO. | Item | Parameter value | Unit |
| 1 | Cutting Capacity/(400N/mm2) | 8 | mm |
| 2 | Cutting Length | 3200 | mm |
| 3 | Variable Cutting Angle | 1-3o | Degree |
| 4 | No. of Plate Holders | 17 | pieces |
| 5 | No. of Stroke/Min SPM | 9/15 |
|
| 6 | Clamp Force | 100 | KN |
| 7 | Cutting Force | 200 | KN |
| 8 | Back gauge Stroke | 750 | mm |
| 9 | Motor | 7.5 | Kw |
| 10 | Weight(approx) | 5800 | Kg |
| 11 | Overall Size(L.W.H) | 3750x1770x2150mm | mm |
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.
With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.
Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.
Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.
Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.
After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
