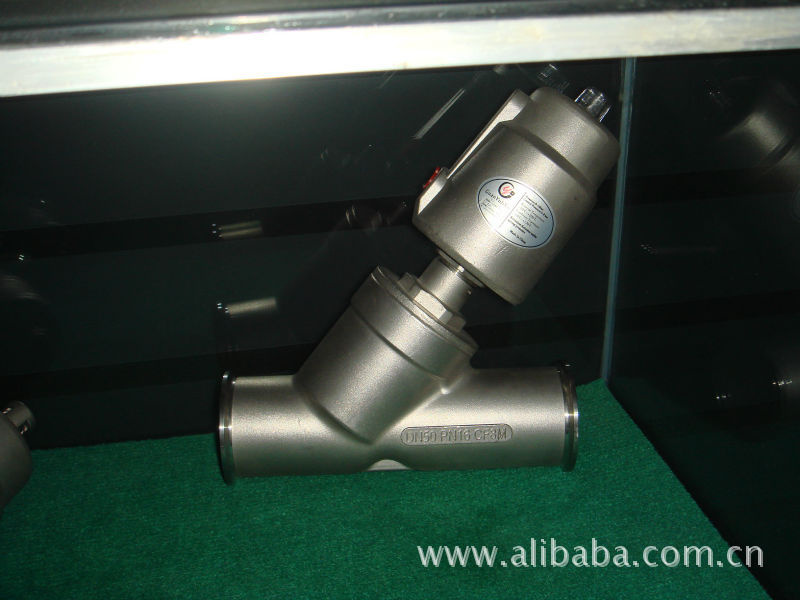

Welded Pneumatic Angle Seat Valve
1. Easy installation, maintenance-free, super long life;
2. Self-adjusting stem seals, reliable operation, , cylinder can be 360 rotated free;
3. Anti-corrosive, high flow rate, low fluid resistance, no water-hammer;
4. Low control air consumption. Optical position indication,
Control type: Double acting, single acting
Size: DN10 ~ DN50(3/8" ~ 2")
Contact way: Flange, Stand: DIN2533
Actuator size: 40mm, 50mm, 63mm, 80mm
Body material: Cf8m (aisi316) or cf8 (aisi304)
Actuator: Cf8 (aisi304)
Seat: Teflon (PTFE)
Applicable fluid: Water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye
Fluid pressure: Max. 1.6mpa (16 bar, 232psi)
Fluid temperature: -10c-- --+200c
Max. Viscosity: 600 mm2/s
Control fluid: Neutral gas, air
Control pressure: 0.3 - 0.8mpa
Environment temperature: -10c---+120c
