Descrition:
It has tight structure, reasonable design, safe and reliable

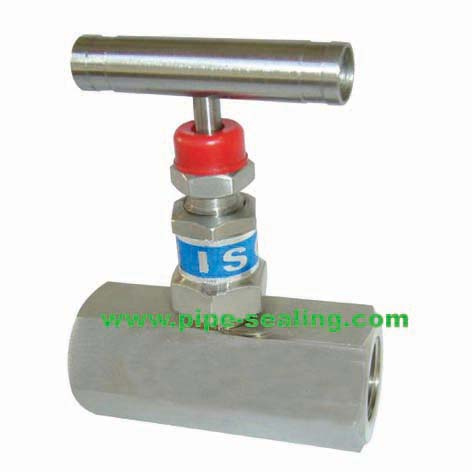

An needle instrument valve is used for isolation of pressure gauges, orifice plates, flush rings, and various measurement instruments. The instrument valve normally "lives" in the open position and is closed only to isolate the instrument for service or replacement.
A Transmitter Isolation Valve is a valve that is used to isolate media in a tank from a pressure / level transmitter. The pressure measurement allows calculation of the level of liquid in a tank. The valve is only closed when the transmitter needs to be isolated for service or replacement.
Standard Features:
-Stainless steel Sanitary Needle Valve
-Material quality: SUS304, SUS316, SUS316L
-Standard: ISO, DIN, SMS, 3A, or required
-Specification: 1/8"-2", or required
-Thread Connection: BSPT, BSP, NPT, or required
-Pressure rating: 6000 PSI/10000PSI W. O. G.
-Maximum Working Temperature: -40° C to 260 ° C
-Metal-to-metal Seat
-Inspection&Testing: API 598
Oil and gas Needle Valves, Compact design, pressures up to 6000psi, Temp up to 315 C, PEEK packing optional, knob handle optional
Needle Valves/Instrumentation Valve, 1/4" to 1"
Features
1. Stem Designs Vee all series
2. Hard seat and soft seat available
3. Straight, angle, and cross patterns
4. Stem threads below packing
5. Panel Mounting
6. Live-loaded packing system
7. Compact design
8. Orifice sizes from 0.080 to 0.375 in. (2.0 to 9.5 mm)
9. Flow coefficients (Cv) from 0.09 to 1.80
10. Knob handle optional upon request
11. OEM offered.
Application
Applicable medium: W. O. G., and som corrosive medium.
Specification
Competitive Advantage:
Competitive price, good quality
Ningbo Forda Pipe Sealing Technology Co., Ltd. Established in 2005, located in industrial center of Yuyao Town of Ningbo. We are a professional manufacturer of various kinds of sealing & thermal insulation, mainly includes four categories: Gaskets, gland packing, gasket sheet and thermal insulation material, equiopped with rich experienced, highly skilled and fully qualified engineers & staffs.
Meanwhile we are a leading trading company for Fastener, pipe fitting, valves as well as relevant accessories, have a big cooperation partner: Shaoxing High Pressure Fastener Factory, who are a professional manufacturer and exporter of high and low temperature fastener, high pressure corrosion resistant fastener.
Relying on advanced management system, superior testing instrument & facility and first-class technology and through the years of vast experience, in depth industrial knowledge, problem solving capability and constantly keeping abreast with the lasted technology. All our products are extensively applied in those industrial departments, such as petroleum, chemical industry, electric power, metallurgy, machinery, automobile, shipping building, pharmacy, aerospace industry, nuclear industry, etc. Our products cover more than ten countries and regions, such as Europe, Middle East, Southeast Asia, etc, and has gained industry recognition from domestic and international clients alike.
We guarantee product quality; Customers first, we satisfy customer demands" are the eternal faith of us. All TONGCHUANG staffs warmly welcome your visit at any time.
