Ducted vacuum with good quality for EU, Australia market
With USA Ametek motor
3 year warranty
CE, RoHS, ISO9001: 2008

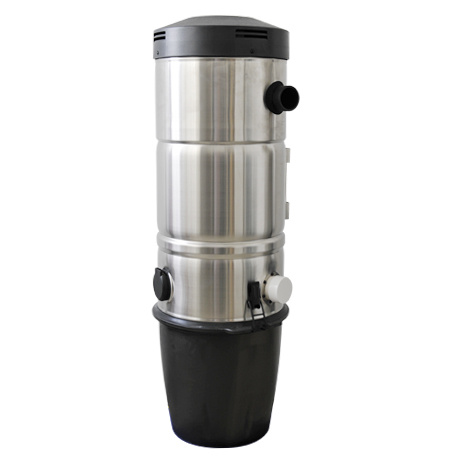

2012 new designed built-in cleaner/ ducted vacuum with Ametek motor
TEKAIBIN Central Vacuum System...Will change your cleaning routine. It is so easy and versatile to use. It's quiet and dustfree. It will help eliminate the drudgery of vacuuming and give you a cleaner, healthier indoor Environment.
A Central Vacuum System includes main power unit, piping, valves and vacuum fittings.
Ducted vacuum with good quality for EU, Australia market
With USA Ametek motor
3 year warranty
CE, RoHS, ISO9001: 2008
2012 new designed built-in cleaner/ ducted vacuum with Ametek motor
TKBHOME Central Vacuum System...Will change your cleaning routine. It is so easy and versatile to use. It's quiet and dustfree. It will help eliminate the drudgery of vacuuming and give you a cleaner, healthier indoor Environment.
A Central Vacuum System includes main power unit, piping, valves and vacuum fittings.
Model |
CVS3.12R80 |
CVS3.16R80 |
CVS3.18R80 |
Category |
Hybrid Cyclonic |
Power Unit Crust |
Imported stainless steel |
Motor |
AMATEK enhanced AIRWATTS bypass type motor |
Voltage(V) |
220/240, 50Hz |
Power(W) |
1200 |
1650 |
1800 |
Air Watts |
333 |
508 |
625 |
Flow(m³/H) |
170 |
175 |
200 |
Suction Pressure KP |
25.5 |
30 |
35 |
Sound Level(3m)(db) |
58 |
61 |
61 |
Service Distance |
45m |
60m |
75m |
Maximum inlets |
5 |
7 |
9 |
Excess Cost |
No cost to changing the filtrating bag |
Utility Inlet |
YES |
Motor Protection System |
YES |
Muffler |
Outward Aluminum Muffler |
Capacity(L) |
20 |
Weight(Kg) |
13 |
Size(mm) |
280 x 915 |
Outer Packing size |
415 x 415 x 995mm |
Motor Warranty |
Crust 3 Year |
A 20” Container Load |
130 Units |
Nano-Filtration System |
>Self cleaning function
>Durable
>No replacement
>No usage cost |
