New Type Ductile Iron Combination Air Valve
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |

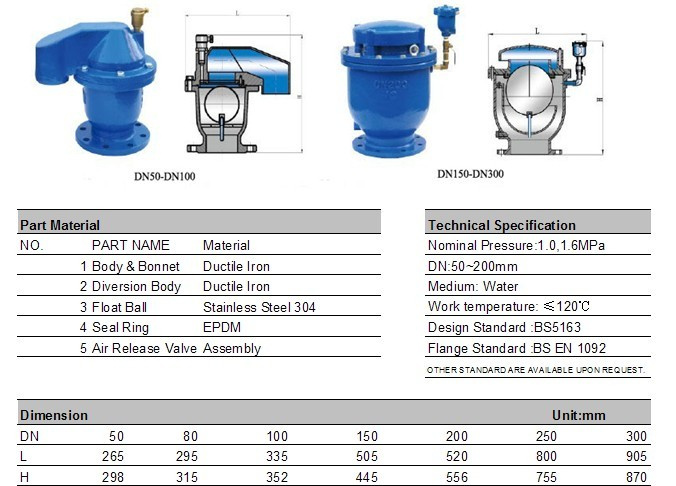

Combination Air ValveBrief IntroductionThe air release component is designed to automatically release small pockets of air to the atmosphere as they accumulate along a pipeline or piping system when it is full and operating under pressure. The air & vacuum component is designed to automatically discharge or admit large volumes of air during the filling or draining of apipeline or piping system. This valve will open to relieve negative pressures whenever water column separation occurs.
Features:Release large volumes of air from pipelines.
Light weight design.
Corrosion resistant construction.
Working Pressure: 1.0MPa/ 1.6Mpa
Sizes: DN150-300
|
Dimension Unit:mm |
|
DN |
50 |
|
80 |
|
100 |
|
150 |
|
200 |
|
250 |
|
300 |
|
L |
265 |
|
295 |
|
335 |
|
505 |
|
520 |
|
800 |
|
905 |
|
H |
298 |
|
315 |
|
352 |
|
445 |
|
556 |
|
755 |
|
870 |
| Prod Model: |
KQRX-10Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Dn40~Dn200: |
Pn10 or Pn16 ,150lbs, JIS 10k |
Shanghai Kangquan Valve Co., Ltd. is a professional valves manufacture, with a high-quality workforce of 218, 10 Senior Engineers, 25 MID-level technicians. Provided with two production bases, it covers an area of 15000 square meters with strong technical forces, well-equipped 90 kinds of machine tools and 2, 500 tons of valves output capacity annually.
Kangquan have accumulated a wealth of information and experience in this field and enjoy a high reputation in dealing with both domestic and overseas trading. In 1998, "green valve P&R&D Unit " cooperated with Shanghai University' S has been set up to development of green products successfully-soft seal epoxy coating gate valve, and has gained P&R&D engineering item Third Honors. Our products line includes various kinds of gate valves, globe valves, ball valves, check valves, cock valves, butterfly valves, etc. Always under the ISO 9001 quality assurance system, up to the international advanced standards of ANSI, API, JIS, DIN, BS and so on. Materials mainly include carbon steel, stainless steel, ductile iron and so on. With hand wheel, worm-gear actuator, pneumatic and electric actuator to be selected, widely used in the industries of petrochemical, natural gas, metallurgy, electric power, pharmaceutical, construction, etc...
With highly qualified professionals and first class service, Shanghai Kangquan Valve Co., Ltd. Has established a highly respected enterprise which has been relied on for years. And we will continuously offer customers the most accurate and high quality delivery service possible.
Excellent quality assurance is our sales purpose,
Competitive price is our sales policy,
On time product delivery and responsive service is our standard.
Shanghai Kangquan Valve Co., Ltd. Hopes to work together with you for a better future. Let' S work together building a mutually beneficial relationship that will last for years.
