Home Valve Products Newe Product Hydraulic Water Level Control Valve

Newe Product Hydraulic Water Level Control Valve

Newe Product Hydraulic Water Level Control Valve
Price: US $ 50-132/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T,Money Gram,Western Union

Specifications
1)Hydraulic DN150 Water Level Control Valve;
2)Professional Manufacturer;
3)ISO,CCC Certified ;
4)Good Quality.

Product Description

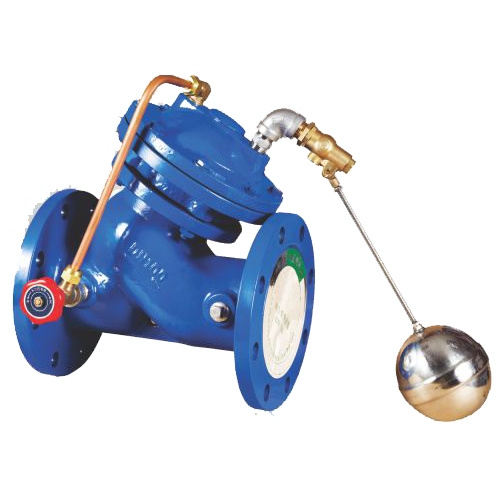

Hydraulic DN150 Water Level Control Valve
 100D Water Level Controlling Valve can control the liquid level of water tank and tower.
It is a kind of diaphragm valve controlled by guide valve. When the liquid level is up to the setting position,the valve will pass signal to water pump through relative structure. Then,the pump will stop supplying water. In turn,when the liquid level is lower than the setting one,the pump will supply water automatically. Because of stable operation,the valve can avoid water hammer phenomenon when the pump opens or closes. Meanwhile,the pressure in the pipeline won't be
too high. The valve is suitable for the automatic water supply of water tank and tower. Besides,

it is simple to maintain,flexible and convenient,and accurate in control of liquid level. The water level is not subject to water pressure. It is tight in closing and reliable in performance.

1. Widely use in industry, building, and fire-fighting;
2. Work by automatic sensitive;
3. Vairous types to choose;
4. Easy install and use.

Features


                               Characteristics and Functions
ModelMS100X-10/16
TypePneumatic valve ductile casting water flow ball valve
MaterialBrass, Cast Iron
Norminal diameterDN40~DN300
Norminal working temp≤80°C
Working mediumwater, air, Low corrosion fluid
SealingPN=1, 1MPA/1, 76MPA
IntensityPN=1, 5MPA/2, 4MPA


                                  Basic Parameters of Water Flow Control Valve
Norminal diameter40506580100125150200250300
Length235235250285365370455580650800
Width230230230250280300350400440470
Heigth335230340360470480535695780905
Norminal working temp≤80°C
Working mediumwater, air, Low corrosion fluid
SealingPN=1, 1MPA/1, 76MPA
IntensityPN=1, 5MPA/2, 4MPA
StandardGB4216-1992


Prod Model: F745X-16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Pressure: Low Pressure
Power: Hydraulic
Temperature Of Media: Normal Temperatu
Media: Water
Function: Measurement
Certification: CCC
Task: Adjust
Structure: Combination
Signal: Continuous
Mathematical Model: Linear
Material: Stainless Steel
Customized: Customized
Condition: Used
Quanzhou Yu Lin Jun Fire- fighting Equipment Co., Ltd is located in Baozhou Road, Quanzhou City, Fujian Province. It's a fire- fighting equipment company which integrate research, development, production and sales as a whole. We have all kinds of products, include but not limit to Intelligent Home Device for Fire- Protection, Foam Bladder Tank, Portable Foam Fire Extinguishing Equipment, Foam Generators, Fire Hose Foam Nozzle, Foam Sprinkler, Foam Fire Hydrant, Foam Hydrant Cabinet, Cabinet gas fire extinguisher equipment, Fire Monitor(Foam/ Water monitor), Fire Fighting Water Monitor, Wet Alarm Valve, Deluge Alarm Valve, Preaction Alarm Valve, Water Flow Detector, Water Sprinkler Head, Signal Butterfly Valve, Signal Gate Valve, Outdoor Fire Hydrant, Fire Pump Connector, Fire Hydrant Cabinet, Lined Fire Hose, Fire Reel, Indoor Fire Hydrant, Direct- current Hose Nozzle, Fire Hose Coupler, Fire Extinguisher, Fire Extinguisher Cabinet, Emergency Lantern, Groove accessories and so on. All these products are widely applied in all kinds of industry, like Telecom, airlines, chemical, power and real estate and so on. It can experience the trail of time and market. The perfect product quality and after- sales service has won good reputation and high praise both from domestic and oversea customers.

We take quality as basic principle, seize the market by technical & quality and build credibility by good service and brand. We aim at developing to be a world leading technology in fire- fighting equipment company and offering best service for customers. Wish we win together and create a safe and beautiful future together.
