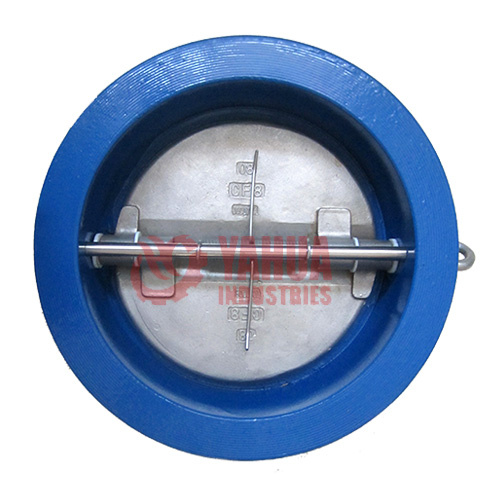

Non return valve with ANSI standard
Flanges according to ASME B/16.4716.5, Class 125 / 150; DIN 2501, PN10 / PN16
ASME B16.1/B16.2
Size: DN40-DN900/ 1.5"-36"
Materials:
Body: Cast Iron / Ductile Iron / Cast steel / Stainless steel / Aluminum bronze
Disc: Ductile Iron / Stainless steel / Aluminum bronze
Spring: Stainless stee(SS304, SS316, Inconel)
Stem: Stainless steel
Seat: EPDM / NBR / VITON / Stainless steel
Working pressure: 1.5"-12" 16 bar; 14"-24" 10 bar/16BAR; 28"-36" max 10 bar
Pressure test according to standards: API 598
The introduction of the company
APC Ningjin Yahua Industries CO., LTD is located in Dezhou city, Shandong Province, China. We are the professional manufacturer and exporter of valves for nearly 9 years. We produce and export our valves to United State, Canada, Europe, South East Asia, Middle East Asia, Russia, South America, etc. We produce valves with ANSI, API, BS, DIN, ISO, JIS standards.
Our products include Butterfly Valves, Check Valves, Gate Valves, Ball Valves, Strainer, Globe Valves, expansion joints, die-casting fitting etc.
We have our own casting foundry. We supply many kinds of castings, including grey iron casting, ductile iron casting, steel & stainless steel casting, aluminum casting, etc. We export our casting parts to many countries in the world. The major casting products are valves parts, pipe fitting, and industries parts.
Besides the regular products, we can make various items according to customers' drawings or samples.
Strict quality control, competitive price, good service help our products have good reputation in overseas markets.
We hope that we may cooperate with more customers all over the world!
|
Inch |
ØD |
ØD1 |
L |
|
Class 125/150 |
Class 125 |
Class 150 |
|
2" |
3.97 |
2.79 |
2.12 |
2.38 |
|
2.5" |
4.76 |
3.15 |
2.38 |
2.62 |
|
3" |
5.27 |
3.86 |
2.62 |
2.88 |
|
4" |
6.73 |
4.61 |
2.62 |
2.88 |
|
5" |
7.59 |
5.7 |
3.25 |
- |
|
6" |
8.62 |
6.77 |
3.75 |
3.88 |
|
8" |
10.86 |
8.7 |
5 |
5 |
|
10" |
13.22 |
10.8 |
5.5 |
5.75 |
|
12" |
15.98 |
12.79 |
7.12 |
7.12 |
AFCON Ningjin Yahua Industries Co., Ltd. is a manufacturer specialized in design and manufacture industrial valves. It can produce more than 300 specifications, 10 categories, for example wafer type butterfly valve, flanged butterfly valve, eccentric butterfly valve, high-performance butterfly valve, check valve, ball valve, rubber wedge gate valve, Y-type strainer and pipefittings.
In 1999 the company established its own pipefitting research center. The factory has more than 30 engineers including 10 senior engineers, 2 American experts. It can design, manufacture and test the valves according to international standard such as ANSI, BS, DIN and national standards, and It also can meet customers requirement.
The company have many authentication such as ISO9001: 2000 EC's PED, CE, Germany TRD100/WO Material, Norwegian DNV Classification Society Factory as well as British LR, and ltalian RINA product. Also it set up its own quality contral and assurance system so the product can reached many countries and regions, such as the United States, Britain, German, Italy, France, Spain, Hong Kong and so on.
Meeting your requirements is always our mission. We will do our best to meet all with first-class quality, competitive price and best delivery.
