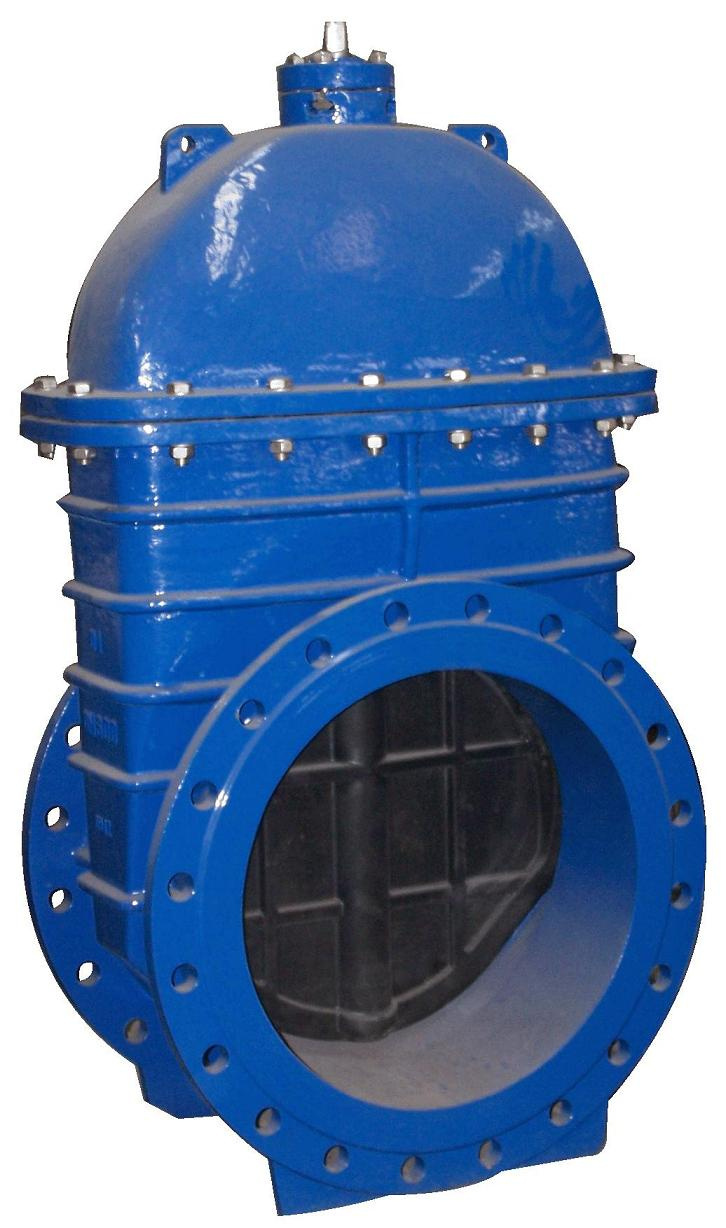

Non-Rising Stem Resilient Gate Valve (IGAXRF-NRSS)
| Price: |
Negotiable |
| Trade Terms: |
by sea, by air |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
IGAXRF-NRSS
CAST IRON ANSI NON-RISING STEM SOFT SEAL GATE VALVE, FLANGED, HANDWHEEL;
1)Standard
Design: MSS SP-70
Face to Face: ANSI B16.10
Flange: ANSI B16.5
2)Main Parts Name and Material
Body: GGG50
Disc: GGG50+EPDM/NBR
Stem Nut: Brass
Stem: X20CR13
Bonnet: GGG50
Handwheel: Steel/GGG50
Dust ring: EPDM/NBR
Sealing ring: PTFE
O-ring: NBR/EPDM
Nut: Brass
Holding Ring: Brass
3)Size :2-24
4)Drawing
Attached Picture or Website
| Prod Model: |
IGAXRF-NRSS |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
Shanghai Ciphy Industry Co., Ltd. Is specialized in export of various valves, pipe, fittings, flanges and plate & sheet in china; All product must be tested and inspected by our engineer; We are very luck that to day our product is no wrong for our every customers.
Our product as follows:
Standard: ANSI Standard, BS Standard, DIN Standard, JIS Standard etc.
Material: Cast Iron(A126 FC20, GG20), Ductile iron(FCD45, GGG40), Malleable iron, Cast Steel(A216-WCB, A352-LCB, A217-WC1/WC5/WC6/WC9), Forged Steel(A105, F5, F11, F22, LF2), Stainless Steel(A351 CF8/CF8M/CF3/CF3M, A182 F304/F316/F304L/F316L), Alloy steel(ALLOY20), Titanium alloy, etc.
Size: From 1/2 inches to 48 inches from 15mm~1200mm.
Valve: Gate valve, Globe valve, Check valve, Ball valve, Butterfly valve, Plug valve, Chose valve, Needle valve, Knife gate valve, resilient gate valve, bellow globe valve, etc.
Flange: Welded Neck, Slip-on, Socked Weld, Lap Joint, Blind, Threaded, etc.
Fitting: 45D, 90D & 180D Elbow, Reduced & Equal Tee, Concentric & Eccentric Reducer, Cap, etc.
Connect: Flanged ends, Butt-welding ends, Socket welding ends, Threaded ends, etc.
Pressure grade: ANSI CLASS 125, CLASS 150, CLASS 300, CLASS 600, CLASS 800, CLASS 900, CLASS 1500, CLASS 2500, DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, JIS 5K, 10K, 20K, etc.
Moreover, we are also engage in processing trade; We can manufacture the products exactly as per the custormer's specific requirements such as nominated trademark and marking, the customer's own technical drawings, etc.
If you find anything interesting here, please do not hesitate to contact us. What you will get is quality products with competitive prices. If you require something not included in this catalogue, please also let us know. With the help of several cooperate factories.
Look forward to having a chance to serve your esteemed company.
