Product Description

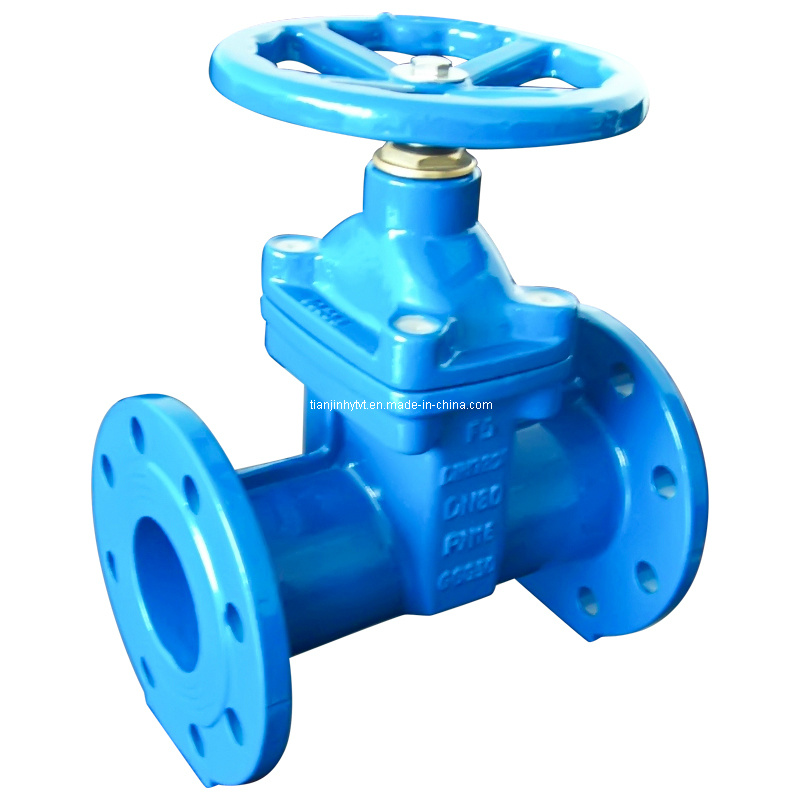

Non-rising stem resilient seated gate valve to DIN3202 F4
Delivery & Packaging
Delivery Detail: General within 30 days or according to the order quantity.
Packaging Detail: Plywood case. (each PC into one bubble plastic bag, several PCS into one Plywood case).
Specifications
1. Suitable media: Water.
2. Flange: DIN2501/EN1092-2 PN10/16/25.
3. Nominal diameter: DN40~DN600 (1 1/2"~24").
4. Tightness check: API 598/ISO 5208/EN12226-1.
5. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar.
6. Operator: Cap top, hand wheel, Gear box, electric actuator, etc.
7. Working temperature: -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80).
8. Face-to-face conform to DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14.
Main parts materials
A) Seat: EPDM/NBR.
B) Gland follower: Brass/ductile iron.
C) Bolt and nut: Stainless steel, steel with zinc.
D) Stem: Stainless steel, brass, bronze, steel with zinc.
E) Hand-wheel: Ductile iron/ malleable Iron/carbon steel.
F) Body/Bonnet/Disc: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450.
Tianjin Tanggu Huayang Valve Co., Ltd, established in 1956, is a share-holding company which originated from the system reform of Tianjin Tanggu Valve Plant. It is the manufacturer firstly imported the technology of centerline butterfly valve. Huayang is a modern valve company providing R&D, manufacture, sales and service.
The headquarters locates in Wuqing Economic Development Area, and enjoys convenient transportation. It covers an area of more than 40, 000 square meters. The company has its own R&D center, manufacture center and inspection center, obtained 12 national patents, passed ISO9001 certificate by TUV and CE certificate by LR.
The product adopts advanced manufacturing processing and strictly conforms to international standards, such as API, DIN, BS, EN, GB, etc. The main produces are butterfly valve, ball valve, gate valve, globe valve, check valve, control valve, strainers etc. The products are widely used in water supply and drainage, power generation, petrochemical, coal chemical industry, metallurgy, medicine and food, etc. The products enjoy good reputation in both domestic and overseas markets.
Tianjin Tanggu Huayang Valve Co., Ltd fully implements 5S management and ERP information management system. With the principle of "leading technology, excellent quality, prompt delivery, satisfied service", we strive to build it into the top valve enterprise in China, and provide first-class product and service for customers all over the world.
