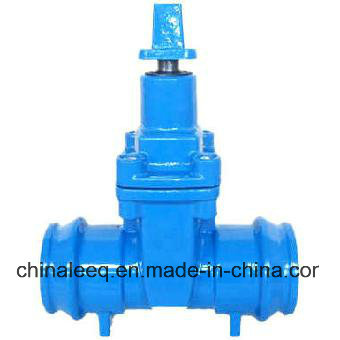

Quick Details
Standard or Nonstandard: |
Standard |
Structure: |
Gate |
Pressure: |
Low Pressure |
Power: |
Manual |
Material: |
Casting |
Temperature of Media: |
Normal Temperature |
Media: |
Water |
Port Size: |
DN50 |
Place of Origin: |
Hebei, China (Mainland) |
Brand Name: |
LIQIAN |
Nominal diameter:: |
DN50-DN300 |
Working pressure:: |
10Bar/16Bar |
Valve Design:: |
DIN3352 |
Face-to-face:: |
DIN 3202-F5/ SABS664 |
Flange accommodation:: |
JISO4422 |
Test Standard:: |
ISO 5208 |
Product Description
Nominal diameter: DN50-DN300
Working pressure:10Bar/16Bar
Valve Design: DIN3352
Face-to-face: DIN 3202-F5/ SABS664
Socket ends Dimensions:ISO4422
Test Standard: ISO 5208
Nominal Diameter DN |
DN50(2'') - DN 300(12'') |
MM |
Nominal Pressure PN |
1.0 |
1.6 |
Mpa |
Test Pressure |
Shell |
1.5 |
2.4 |
Sealing |
1.1 |
1.76 |
Working Temperature |
-10~100 |
ºC |
Suitable Medium |
Water,Sewage,Sea Water,Air,Foodstuff,Oil etc. |
No. |
Part |
Material |
1 |
Body |
GGG50 |
2 |
Wedge |
GGG50+ EPDM/NBR |
3 |
Wedge Nut |
Brass |
4 |
Stem |
Stainless Steel |
5 |
Bonnet |
GGG50 |
6 |
Back Sealing O-ring |
EPDM/NBR |
7 |
O-ring |
EPDM/NBR |
8 |
Stuffing Nut |
Brass |
9 |
Gland Flange |
GGG50
|
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
