Normally Closed Steam Solenoid Valve Ycp31

Name: Normally Closed Steam Solenoid Valve Ycp31
Brand: Valve Industry
SKU: 722516335
Availability: InStock
Rating: 4.8 (118 reviews)

Price:	US $ 33/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Yuyao Yongchuang Solenoid Valve Co., Ltd.

Showroom Product Company Profile

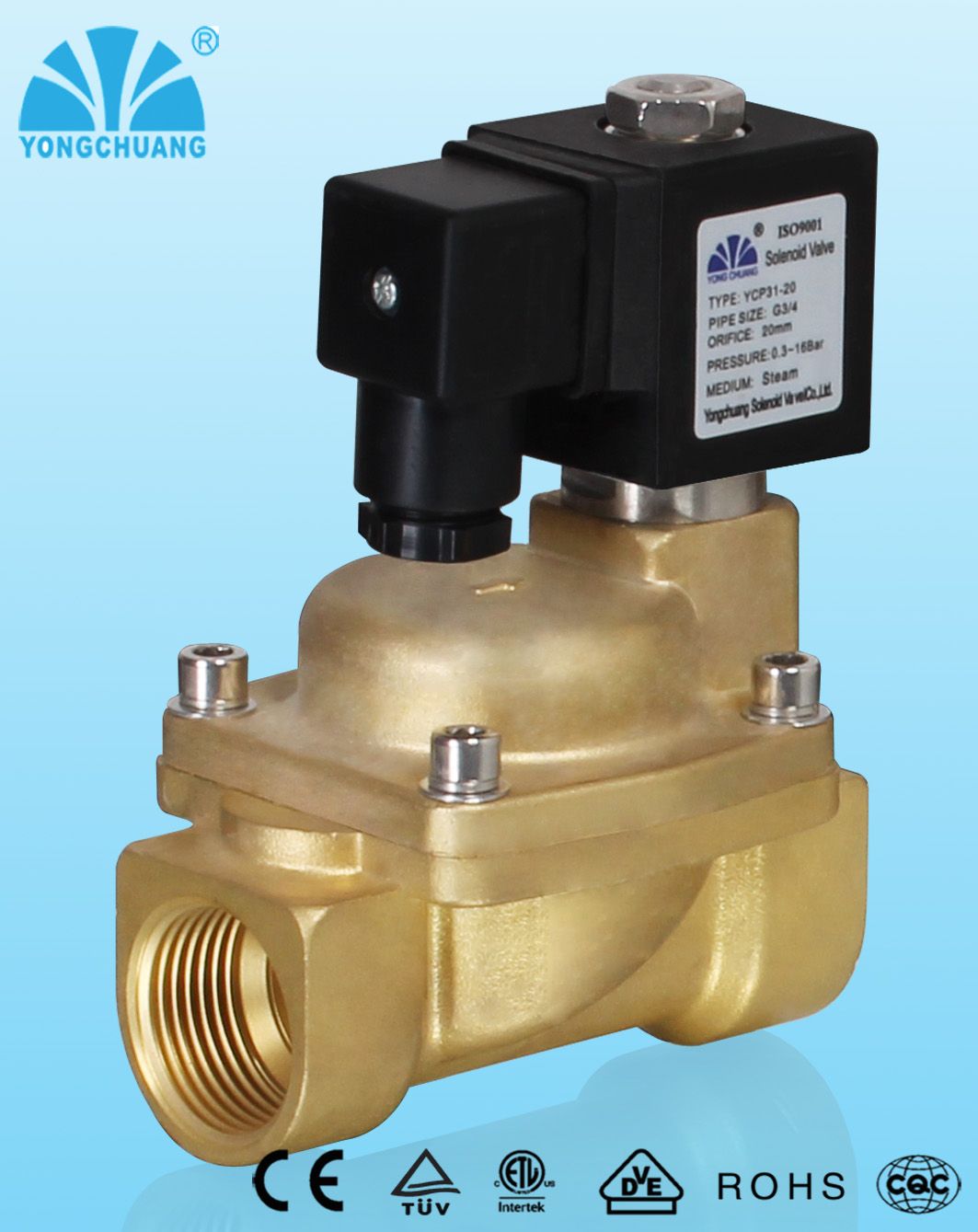

Normally closed steam solenoid valve YCP31

Packaging & Delivery

Packaging Detail: 21*25*31cm

Delivery Detail: Within 20days after confirmaiton

Specifications

Steam solenoid valve
1. ISO 9001: 2000, CE approved
2. 1 million times life testing
3. Reliable quality
4, One year gurrantee,

Steam solenoid valve

Characteristic:
1. Pilot operated piston construction with low power consumption
2. Seal serves longtime at steam ambient;
3. Used for long-time working in pipeline system.
Medium: Steam and Hot Water, Oil, etc.
Temperature: PTFE Seal: -4F to 250F, -20 to 180
Pressure: YCP31: 0.05MPa ~ 1.6MPa
YCP31 Flange: 0.05MPa ~ 1.6MPa
Port Size: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Port Thread: BSPP, BSPT, NPT, Flange, UNF
Orifice (mm): 12, 15, 20, 25, 32, 40, 50
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V@60Hz 110V, 220V@50Hz
Tolerance: +/- 10%
Coils: S21H, 22VA(AC), 15W(DC), IP65, 100%ED
Material: Body - Stainless steel
Seal -PTFE
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304

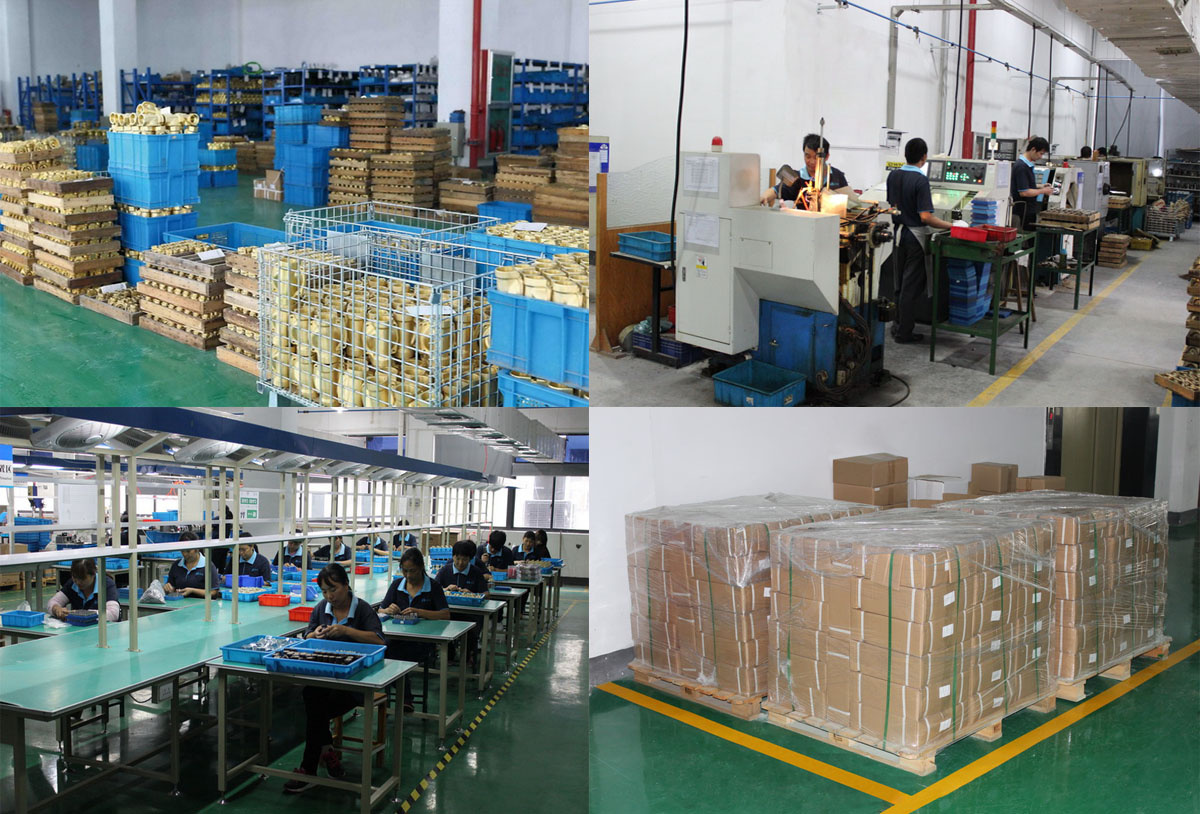

Workshop

Our Certifications

Production Delivery
Products will arrive to your office in 7~15 days after the payment is finished.
We will dispatch the valves by DHL, FedEx, TNT, UPS or by sea, it just depends on the weight of the products as well as your choice.

Our service

For OEM products

We will finish the production within 15 days after payment has been confirmed. Cooperation with PARKER to improve our quality!

Warranty

Any question or problem will be respond within 24 hours.

One year guarantee:

One year since delivery.

Lifetime service:

Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.

Problem solve:

If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send our technicist to you.

Quality control:

All the products are calibrated with real working condition, and 100%tested before shipping as qualified product.

Integrity:

All the warrenty and guarantee from us will be put into come true.

Detail Contact Information:

Name: Emily Yan

Tel: +86-574-62507206 FAX: +86-574-62505192
Cell: +86-13738891676

Thanks for your inquire!
You can according the below table to select type for yourself!

Port Size	Orifice	Cv	Min Pressure	Max Pressure		Seals Material	Body Material	Valve Body	Coil
Port Size	Orifice	Cv	Min Pressure	AC(22VA)	DC(15W)	Seals Material	Body Material	Valve Body	Coil
3/8"	12	4.5	0. 05MPa	1. 60MPa	1. 60MPa	PTFE	Stainless Steel	YCP3112 X X X	S21H
1/2"	15	4.5	0. 05MPa	1. 60MPa	1. 60MPa			YCP3115 X X X	S21H
3/4"	20	9.3	0. 05MPa	1. 60MPa	1. 60MPa			YCP3120 X X X	S21H
1"	25	12	0. 05MPa	1. 60MPa	1. 60MPa			YCP3125 X X X	S21H
1 1/4"	32	24	0. 05MPa	1. 60MPa	1. 60MPa			YCP3132 X X X	S21H
1 1/2"	40	29	0. 05MPa	1. 60MPa	1. 60MPa			YCP3140 X X X	S21H
2"	50	48	0. 05MPa	1. 60MPa	1. 60MPa			YCP3150 X X X	S21H

Port Size	Orifice	Cv	Min Pressure	Max Pressure		Seals Material	Body Material	Valve Body	Coil
Port Size	Orifice	Cv	Min Pressure	AC(22VA)	DC(15W)	Seals Material	Body Material	Valve Body	Coil
F1"	25	12	0. 05MPa	1. 60MPa	1. 60MPa	PTFE	Stainless Steel	YCP3125 X X X	S21H
F1 1/4"	32	24	0. 05MPa	1. 60MPa	1. 60MPa			YCP3132 X X X	S21H
F1 1/2"	40	29	0. 05MPa	1. 60MPa	1. 60MPa			YCP3140 X X X	S21H
F2"	50	48	0. 05MPa	1. 60MPa	1. 60MPa			YCP3150 X X X	S21H

Prod Model:	YCP31
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Pilot Operated
Valve Structure:	Pilot Piston Structure
Application:	Household Usage
Connection Form:	Thread and Flange
Power Supply:	AC and DC

Founded in 1998, Yuyao Yongchuang Solenoid Valve Co., Ltd. is a technical company specialized in designing and manufacturing solenoid valves, cylinders, flow meters, and heating air-conditioning control products. Our products have been widely applied in the automation of the fluid control.

We have three sales and service branches in Beijing, Guangzhou and Chengdu cities and our sales network covers more than 20 important cities. In 2000, our products merged into the North American market. Now, they have already expanded to different countries and regions in Europe, Southeast Asia and South America.

Since our establishment, we have been working with a clear aim ahead to provide high quality products and service to our clients. We have paid close attention to product development and innovation. From receipt of the firm order to release the items, we have serious procedure to control the quality, and offer the best service to our clients. There are specific persons in charge of providing technical expertise for quality problems and the quality control. There are procedures defining in process inspection and testing stages for the manufacturing process.

Concerning the global competition, we have import advanced equipment and invite many outstanding engineers to improve the product performance. According to the rough statistic, our total annual output is about 700, 000 valves. There are three production lines for industrial use valve, household appliances use valves and pneumatic cylinders.

Complied to ISO9001: 2000, we get the CE and TUV certificates and we can also offer high standard materials on the special request which conforms to our principles: Innovation, endless development; Individual solution for customer at best service; Attention to quality is one of our main guidelines.

We hope to develop the business of fluid control with more companies in the world, and we are convinced with our joint efforts the business will bring us a bright future.
