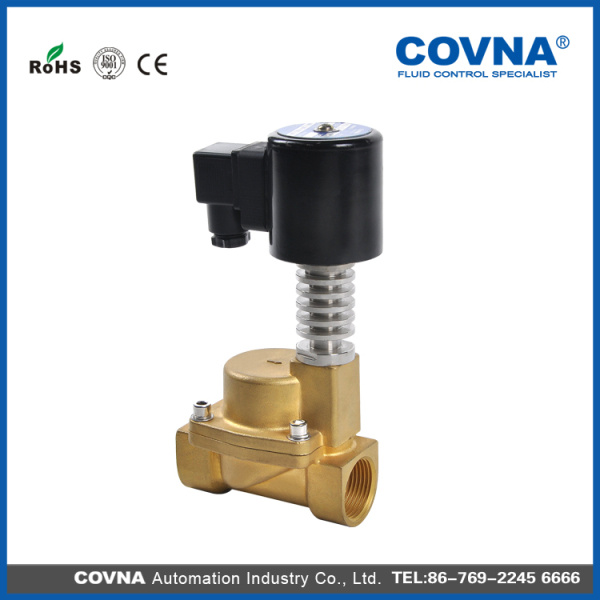

Normally Closed Steam Solenoid Valve
| Price: |
US $ 22/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
normally closed steam solenoid valve
COVNA series normally closed steam solenoid valve COVNA series steam solenoid valve for pilot type structure, the highest temperaturefor 180 degrees, the highest voltage to 25bar, body material mainly for wrought brassand stainless steel. It is the industrial automatic control commonly used products. The2/2 way series normally closed solenoid valve for gas, liquid, steam, oil etc in mediumpipeline to automatic control, The flow direction of medium and valve arrow keeps consistent, horizontal installation, winding up.Standard technical parameters
Body
Interface size: 1/8''-2''
Flow diameter: Normally closed type: 2.5-50mm
Body material: Wrought brass, 304, 316
Connection type: G thread, NPT thread, flanged
Pressure class: 0.5-25bar
Structure type: 2.5-4.5mm for direct acting
15-50mm for pilot type (the pipeline minimum start-up pressure of 0.5bar)
Control type: Normally closed
Components
Seal material: TEFLON: 0ºC-180ºC
VITON: 0ºC-120ºC
(Using fluorine rubber seal, can be used for normal temperature medium, pressure up to 25bar)
Ambient temperature: 0ºC-85ºC
Install way: According to the body tag to install, in order to enhance the valve service life, better to coil upward, horizontal installation;
Coil voltage:AC24V/110V/220V/230V/240V 50/60HZ DC24V/12V ±10% fluctuation allowed
Explosion-proof class: Optional EX m II BT4
Solenoid valve application and selection 1. Valve types: 2/2way 2/3way (3 way valve please note the pressure inlet port working type)2. Operation type: Normally closed (Power off closed, power on open) Normally open (Power off open, power on close) 3. Coil optional: Normal temp. (F class) High temp.(H class) Explosion proof (X) The standard junction box configuration Lead type configuration 4. Voltage: AC V 50/60HZ DC VVoltage values (V) ______ Power requirement _______ without power requirement ________5. Medium: Air Water Hot water Steam coil gas Light oil 6. Medium temperature: _______ºC7. Body material: Wrought brass Casting copper SS304 SS316 Others 8. Pressure: The mini. Inlet pressure______ kfg/cm2 The max. inlet pressure _______ kfg/cm2After the valve and before the valve pressure difference _______ kfg/cm2 Whether there is the differential pressure in the system9. Connection size: Inner thread G ______ ANSI thread NPT ______ Flanged ________10. Flow size _________ mm Or needed to flow under the rated pressure differential11. Service environment: Ambient temp.: _____ ºC Indoor____ Outdoor_____ Underwater_____ Others _______12. Other optional: Such as with manual, etc _______________________________________________________________13. Special requirements: ____________________________________________
| Prod Model: |
HK10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-50~180 |
| Seal: |
NBR, EPDM, PTFE or Viton |
| Certificate: |
CE,RoHS,TUV,ISO |
| Port Size: |
1/2",3/4",1",1 1/4",1 1/2",2" |
| Keyword: |
Gas Solenoid Valve,Natural Gas |
| Production Leadtime: |
7~15 Days After Payment Finished |
| Warranty Period: |
One Year |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Piston Structure |
| Application: |
Household Usage |
| Power Supply: |
AC or DC |
Our company specializes in the production of solenoid valve and pneumatic valve on pipeline fluid. COVNA, original brand, runs its business around the world and its quality awards ratification through competing with European countries, the United State, Japan and other major industrial countries in the international market.
By far, export production ranks first in the country with its sale throughout the country in the field of two position two way solenoid valve. Since the general manager has entered into the industry of valve, pipeline fluid automation and labor saving, he has hold the Three First Business Philosophies of quality first, service first, and credit first all the time. It makes the quality and output of our products advance at an equal pace with them from Europe, the United State and Japan in the international market. With reasonable price, even the medical device industry in France, Spain and other countries install our products, COVNA solenoid valves.
