Specifications
normally closed plastic water solenoid valve？
1.ISO 9001:2000, CE approved？
2.1 million times life testing？
3.Reliable quality

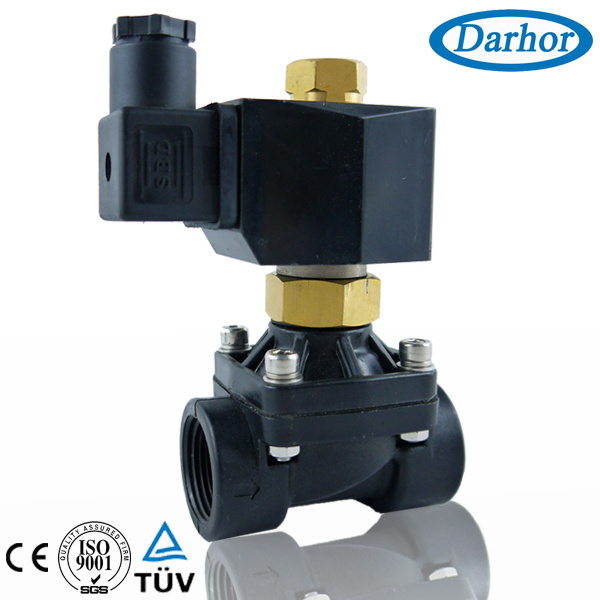

normally open plastic solenoid valve
Technical？Parameter:
1,Medium:？？？？？？？ Water,Liquid？
2,Temperature: 0~50 degree？
3, port size :？？？ 1/2", 3/4", 1"
Technical Specifications
Medium:？？？？？？？？？？？ Water,Liquid
Temperature:？？？？ 0~50°C
Mode of action:？ Semi-different lift type
Pressure:？？？？？？？？？ Normally Closed(N/C)6 bar
？？？？？？？？？？？？？？？？？？？？？ ？ Normally Open(N/O) 6 bar
Body material:？？ PA
Sealing material:NBR
Protection calss:IP65
The structure of 2WSL-K normally open plastic solenoid valve
Other options for this model: ？( both N/O and N/C)
Production line
？
|
Model |
2W-15-SL k |
2W-20-SL k |
2W-25-SL k |
|
G connection |
1/2 |
3/4 |
1 |
|
Orifice Size |
mm |
15 |
20 |
25 |
|
Cv Value |
4.8 |
7.6 |
12 |
|
L |
mm |
74 |
70 |
87 |
|
H |
mm |
115 |
115 |
125 |
|
Power |
220V~230V AC/50-60HZ 22VA;110V~120V AC/50-60HZ 22VA;
DC 24V 18W;DC 12V 17W;Range:±10% |
