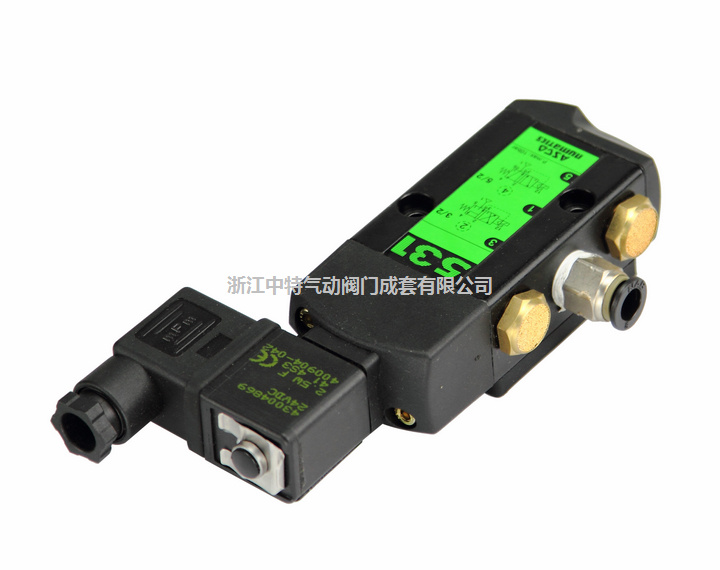

ASCO not explosion-proof solenoid valve
Product Description
Operated way: Direct operated
Control way: Nc(standard)
Pipe size: G1/8~g1/2(standard)
Dn: Dn1.5~2.5mm
Pn: The highest pn: 1.6mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80
Circumstance temperature: -10~+50
Material: PS, PP, ABS...
Sealing material: NBR(standard)\FPM(standard)
Standard voltage: AC: 220V(50/60Hz) DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
|
Standard: |
|
Item no. |
DN
(mm) |
PIPE SIZE
(G) |
PN
(MPa) |
Kv
(m3/h) |
circumstance temperature
() |
medium temperature
() |
|
2331001-3232 |
1.5 |
1/8 |
0-1.6 |
0.02 |
-10-+50 |
-10-+80 |
|
2331002-3232 |
2 |
1/8 |
0-1.0 |
0.08 |
|
2331003-3232 |
2.5 |
1/8 |
0-0.6 |
0.16 |
|
2331001-3246 |
1.5 |
1/4 |
0-1.6 |
0.02 |
|
2331002-3246 |
2 |
1/4 |
0-1.0 |
0.08 |
|
2331003-3246 |
2.5 |
1/4 |
0-0.6 |
0.16 |
|
2331501-3232 |
1.5 |
INNER/OUTER AT THE BOTTOM OF THE VALVE |
01.6 |
0.02 |
|
2331502-3232 |
2 |
INNER/OUTER AT THE BOTTOM OF THE VALVE |
0-1.0 |
0.08 |
