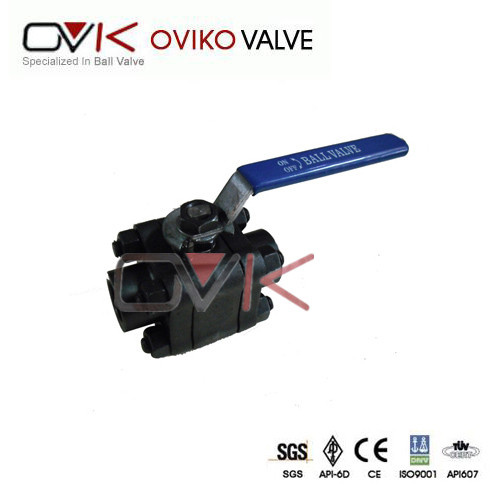

NPT Ball Valve for Oil&Gas
| Price: |
US $ 1-200/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
USAGE
The NPT ends ball valve is used to cut off or connect the media in middle and low pressure pipelines. The driving modes include manual operation, or pneumatic operation and electric operation. According to different structure designs, the valves can be one-piece, two-piece and three-piece.
| PART NAME | A | B | C | D | E | F |
| Body | WCB | WCB | WCB | CF8 | CF8M | LCC |
| Ball | A105+ENP | F304 | F316 | F304 | F316 | LF2+ENP |
| Stem | A105+ENP | F304 | F316 | F304 | F316 | LF2+ENP |
| Stud | B7M | B7M | B7M | B8M | B8M | L7M |
| Nut | 2HM | 2HM | 2HM | 8M | 8M | 7M |
| Seat | PTFE/PPL/NYLON/DEVLON |
| O-ring | VITON |
| Packing | GRAPHITE/PTFE |
| Anti-fire Gasket | 304+GRAPHITE |
| Prod Model: |
OVK-150505 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8-3'' |
| Pressure: |
800wog or 1000wog |
| End Connection: |
NPT |
| Design And Test: |
API598/6D/En17292 |
| Fire Safe: |
API607 and Nace Mr 0175 |
| Certificate: |
API6d,CE,ISO9001 |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
| Function: |
Fluid Control |
| Nominal Pressure: |
800wog or 1000wog |
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.
Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.
We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
