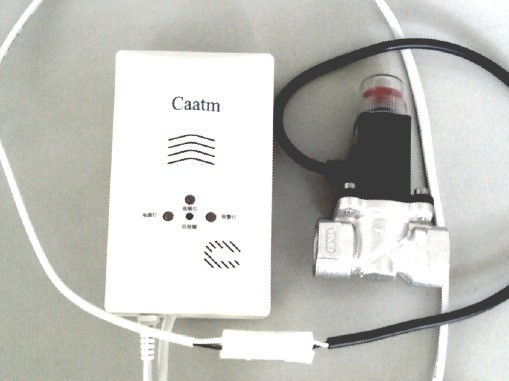

OAKO Gas leak detector with shut off valve
1. Features
Lightweight, low-cost valve for home use.
Designed as gas pipe breakers for emergency use.
Applicable in natural gas, liquid gas, manufactured gas.
Ideal for low power and pressure.
2. Parameter
Closing mode: Capacitor discharge to close or manually close
Open mode: Manually open only
Keep mode
Remaining open or closed without power
Closing time: Less than 1 second
Shut off on strong Vibration: Automatically close under strong vibration
Applicable Media: Natural Gas, GLP and non-corrosive gases
Sealing material: NBR rubber
Valve body: Aluminum Alloy
Connection: Female Thread
Working temperature: -10° C~50° C
Storage temperature: -30° C~60° C
Voltage: DC7V~24V
Explosion-proofing mark: Exmb T6
Casting sealed explosion-proofing: No static electricity caused sparks, will not enhance fire conditions.
Reliable operation: Operating parts have been tested 5000 times without failure
Reliable sealing: A precision process is used to guarantee the valve is securely sealed; NBR rubber to ensure long life cycle--typically 15 years
*AF01 series products have two body material brass and aluminum alloy.
AF01 series products can use pulse driving or manually to close.
3. Solenoid enclosures
High-quality plastic solenoid enclosures
Dust-proof, water proof, explosion-proof
Degree of protection is generally
L Product instructions should be carefully read before installation and use
L Companies of installing valves should have appropriate qualifications, and install and accept in accordance with construction specifications of gas pipeline and requirement of manufacturers.
L specifications require to set manual shut-off valve before emergency shut-off valve.
L A valve should be installed in the gas flow direction and the allowed location marked on the valve body.
LAfter cleaning the pipeline, install valves in order to avoid making tube impurities damage valve seals when cleaning the pipeline.
The valve controlling wires should be connected correctly. White indicates positive while Black stands for negative. Mismatch leads to fatal consequences. Propose terminal crimping, poor contact will seriously affect the reliability of electric valve.
4. Honors and advantages
Reputation of 3000000 users
30 technology patents
Drafting unit of National Standard
ISO9000: 2008 CE&BV
Great contribution company of Zhangjiang High-Tech Park
First choice of gas company.
|
Closing mode |
Capacitor discharge to close or manually close |
|
Open mode |
Manually open only |
|
Keep mode |
remaining open or closed without power |
|
Closing time |
less than 1 second |
|
Shut off on strong Vibration |
Automatically close under strong vibration |
|
Applicable Media |
Natural Gas, GLP and non-corrosive gases |
|
Sealing material |
NBR rubber |
Valve body
|
Brass Alloy/ Aluminum Alloy
|
Connection
|
Female Thread
|
|
Working temperature |
-10 ~50 |
|
Storage temperature |
-30 ~60
|
|
Voltage |
DC7V~24V |
Explosion-proofing mark
|
Exmb T6 |
|
Pressure |
10KP~0.1MP |
|
Casting sealed explosion-proofing |
No static electricity caused sparks, will not enhance fire conditions.
|
|
Reliable operation |
Operating parts have been tested 5000 times without failure |
|
Reliable sealing |
A precision process is used to guarantee the valve is securely sealed; NBR rubber to ensure long life cycle--typically 15 years |
*AF01 series products have two body material brass and aluminum alloy.
*AF01 series products can use pulse driving or manually to close. |
Oako Technology (Shanghai) Co., Ltd., manufactures a large selection of low-power solenoid operated valves for gas system control applications. These valves are available in 2-way normally-open, normally-closed, and manual reset. Oako valves are available in brass, aluminum, steel and iron with different surface treatments. Our features include explosion-proof, pipe tap, visual indication, and closure-proof with leading agency approvals. The pipe connections are from 1/2" to 8" at pressure up to 500psi. Most valves are rated to 30deg. F for outdoor installation in cold weather climates. Oako's gas emergency shut off valves have the lowest switching power requirements. They are also the first in their class with direct CMOS digital interface.
Established in 2003, our company is an American-funded company based in Shanghai, with technology-driven design and manufacturing. Oako produces quality products that meet or exceed industry standards. As a result, The AF05B Series meet the compulsory requirements of National Standard. Oako uses an EPR system to improve productivity.
Oako is customer oriented and completely focuses on customers' wants and needs.
At Oako, we are committed to high standard of management in all aspects of our production and quality control, and we ensure all Oako Valves are cost-effective and reliable. Customized designs meet specific requirements of customers by using the latest design software. Oako valves have international recognition in accordance with approvals of CE and ISO9001.
Oako's goal is to bring our high quality products to the utility industry and enable our customers to dominate in their chosen markets.
