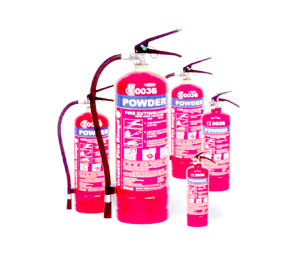

ODEN(UQ) SERIES DRY POWDER
EXTINGUISHERS WITH CE APPROVAL
Valve is with pressure release & CE mark
Cylinder is with CE mark
23mm Diaphragm Pressure is CE approval
Bottom type: UQ foot ring type.
|
Catalogus Model |
HM01-40-1 |
HM01-40-2 |
HM01-40-3 |
HM01-40-4 |
HM01-40-5 |
HM01-40-6 |
|
Product Code |
ODEN (U)1 |
ODEN (U)2 |
ODEN (U)3 |
ODEN (U)4 |
ODEN (U)6 |
ODEN (U)9 |
|
High-Approx(mm) |
280 |
327 |
341 |
405 |
427 |
494 |
|
Shell-Approx Dia(mm) |
85 |
110 |
140 |
140 |
162 |
184 |
|
Capacity(L) |
1.25 |
2.50 |
4.0 |
5.0 |
7.5 |
11.25 |
|
Weight Full-Approx(kg) |
2.42 |
4.05 |
5.52 |
6.9 |
9.3 |
13.9 |
|
Discharge time-Approx(s)Min |
9 |
11 |
12 |
15 |
17 |
20 |
|
Test Pressure(bar) |
27 |
27 |
27 |
27 |
27 |
27 |
|
Working Pressure at 20(bar) |
14 |
14 |
14 |
14 |
14 |
14 |
|
Fire Rating(70%ABC Powder) |
8A/34B/C |
13A/70B/C |
13A/70B/C |
27A/114B/C |
34A/183B/C |
43A/233B/C |
|
Fire Rating(40%ABC Powder) |
5A/34B/C |
13A/70B/C |
13A/70B/C |
21A/114B/C |
27A/144B/C |
34A/233B/C |
|
Temperature Range |
-30 to +60 |
-30 to +60 |
-30 to +60 |
-30 to +60 |
-30 to +60 |
-30 to +60 |
|
Packing Specification-Complete(mm) |
130*88*360 |
135*115*410 |
155*150*450 |
155*150*510 |
175*170*540 |
205*200*610 |
Huamao group is a professional manufacturer and exporter in the field of valve products, fire fighting products. Our products include ball valve, gate valve, check valve, close valve for water system, pneumatic parts(solenoid valve, hand valve etc., ), fire extinguisher valve and so on. We are skilled in OEM products as well as developing new products for customers.
We will try our best to supply the products to you with competitive prices, best quality and service.
