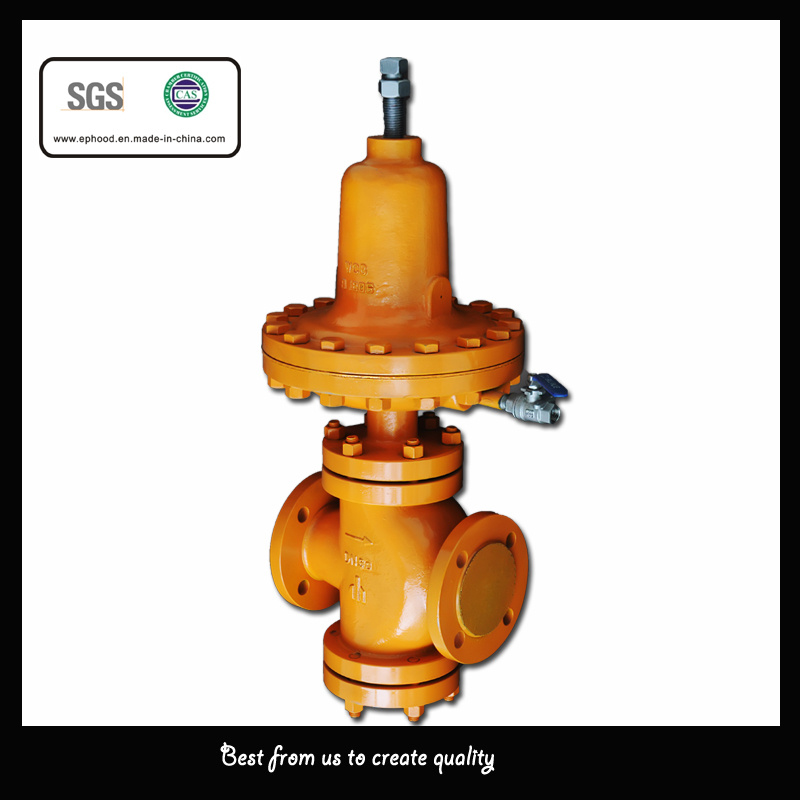

Oil pressure reducing valve:
Our company has successfully developed this valve due to long time imported of foreign technology and continous efforts. After the localization of pressure reducing valve, not only improved on the machining accuracy, at the same time improved the performance of the valve. Which guarantees the quality and reduces the costs.
So this valve achieves the manufacturing is higher than the world international lever, but the price is lower than the foreign brand.
Details:
Delivery pressure precision: 0.06Mpa
Maximum flow capacity: 500L/min
Leakage: 2.5L/min
Body material: Carbon steel
Optional connection type: RF, BW
|
Port size |
Working pressure |
Face to face dimention |
Flange design standard |
|
2" |
150LB |
237 |
NPT 2" |
|
40mm |
2.5Mpa |
250 |
GB9113.4 2.5Mpa |
|
50mm |
2.5Mpa |
250 |
GB9113.4 2.5Mpa |
We are valve manufacturer specialized in the industrial valves utilized in the server application environment against high temperature, high pressure, high corrosive and low temperature or cryogenic application ranging from petrochemical, offshore, chemical, gas, power plant, shipyard to long distance pipeline and pharmacy or other industries. Valve types vary from ball valve, globe valve, check valve, gate valve, butterfly valve to plug valve, and also from tank bottom valve, sampling valve, double block & bleed valve, strainer to sight glass.
Valve material are available from Titanium, Nickel alloy, Zirconium, Nickel-Aluminum-Bronze, (Super) Duplex to alloy 20#, 904L, 310S, 321, 347 or other anti-corrosive alloys. With emphasis on quality consistency and innovative design, we gradually turn to be reliable business partner for plenty engineering companies and end users all over the world.
