on/off Control Valve

on/off Control Valve
Price: US $ 10.6/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Product Description

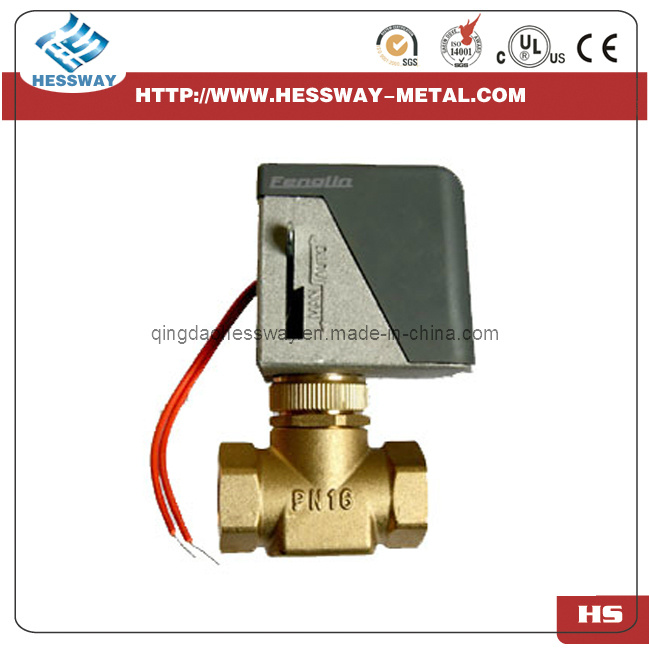

Electric Flow Control Valve with CE SIZE: 1/2", 3/4", 1", (Optional)

FLVA-7010 Series electric fan coil fan coil water valves are suitable for on-off control, hysteresis synchronous motor drive for the use of force, power to open the valve, spring reset after a power failure, and is equipped with a manual opening valve operating mechanism is central air conditioning one of the most popular electric valve system procurement
Body connection mode: In mid-december, pipe thread (can also be customized according to user demand)
Pieces of motor voltage and valve body to take over the form can be customized according to customer requirements

Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification


Suitable Applications
Used to controll the flow of hot water, freezed water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly.

Material description
The valve body material: Forged brass
Stem material: Stainless steel (AISI302)
Sealing material: Nitrile rubber (NBR)
Drive chassis: Die casting aluminum alloy
Drive cover: Flame retardant ABS engineering plastics
Actuator motor Hysteresis synchronous motor Media temperature range 2°C~90°C
Power supply AC220V Ambient temperature 0°C~60°C
Power consumption <7.5W     Running time "on": Approx. 10s,"off": Approx. 5s
Output torque 1.5~6.0N.M Body pressure 1.6 MPa
Protect rank IP54   Allow differential pressure ≤0.13 MPa
Pipe Connection G/BSP   Port Size 1/2''(DN15), 3/4''(DN20), 1''  (DN25)

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Diameter: 1/2" , 3/4" , 1" , (Optional)
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Metal Hard Sealed
Connection Form: Double-Clip Type
Structure: Double-Eccentric Sealing
Seal Form: Force Sealed
Working Temperature: Medium Temperature (',120??C
Application: Household Usage
