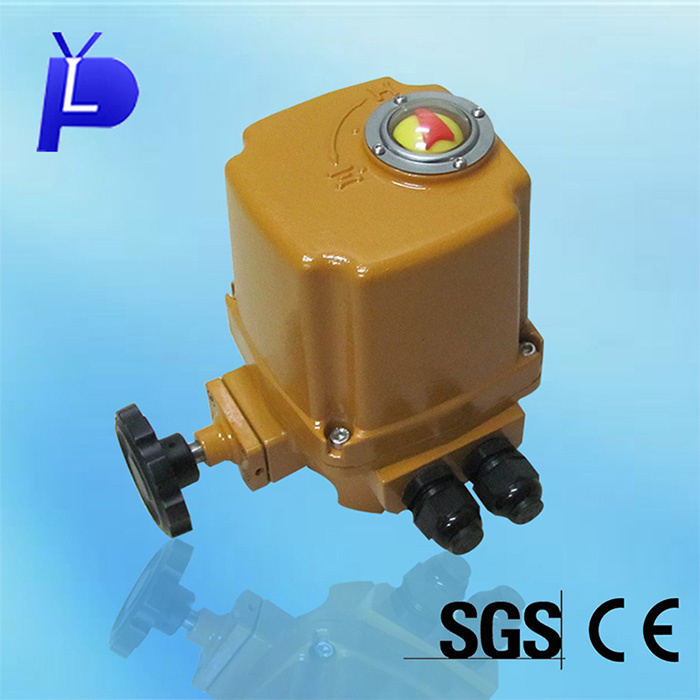

On/off Type Electric Actuator with Hand-Wheel:
The electric actuator series produced by our company are Small in size, environment-friendly energy saving, large in torque, Long in operation life span, suitable for butterfly valves, ball valves Of 90 degree rotation, multiple-turning valves and similar devices.
The products are widely used in pipeline fluid transport and closure For petrochemical, printing and dyeing, food, electric power, Pharmaceutical, metallurgy, water supply system, municipal engineering And other industries.
Our advantage:
1. We have professional technicists to ensure advanced design.
2. We have professional and technical QC team to ensure 100% products checking.
3. We have own factory with competitive price and good quality.
4. Our products is accepted by all over the world.
5. We have own import and export right. Small order can be accepted.
6. High quality with competitive price, short delivery time.
7. Good quality material and advanced production equipment.
8. Efficient sales team and excellent customer service.
9. Our products have passed the CE and SGS Certificate.
10. Our Quality assurance period for 2 years.
Product Information:
|
Model No. |
QH1 |
|
Torque |
35Nm |
|
ISO5211 Std. |
F03/F05/F07 |
|
Shaft Dimension |
11x11; 14X14 |
|
Power |
DC24V/AC220V;50/60Hz |
|
Housing |
High strength aluminum alloy with environment-friendly surface coating; IP67, accord with the outdoor used testing standard. ( IP 68 is optional ) |
|
Temperature Control |
The electric motor is equipped with temperature control device to prevent over-heating and burnt up. |
|
Manual Override |
Manual override can be used at power outage. |
|
Position Indicator |
Using high strength transparent plastic, position indicator creates 360 visual angle. |
|
Gear Transmission |
Using planetary gear drive and worm wheel drive, with stable transmission performance, excellent self-locking, low noise, long life and other characteristics. |
|
Environment Temp |
-25°C~60°C |
|
Relative Humidity |
<90%(25ºC) |
|
Working Environment |
Without any high corrosion and explosion medium. |
|
Working Time |
Short-time working system. Rated working time is 30 minutes. |
Shanghai PLY Automatic Control Equipment Co., Ltd. is a professional manufacturer specializing in research, development, manufacture and sales of Electric actuators. It is located in Jiading District, Shanghai and In 2013, PLY found his first sales office in Zhabei District, Shanghai. PLY owns a comity team and a group of capable technical personnel. By now, PLY has passed CE certificate and has good sales achievement in domestic market, and also export to Asia, Australia, Europe, America and so on.
The electric actuator series produced by PLY are small in size, environment-friendly energy saving, large in torque, long in operation life span, suitable for butterfly valves, ball valves of 90 degree rotation, multiple-turning valves and similar devices. The products are widely used in pipeline fluid transport and closure for petrochemical, printing and dyeing, food, electric power, pharmaceutical, metallurgy, water supply system, municipal engineering and other industries.
