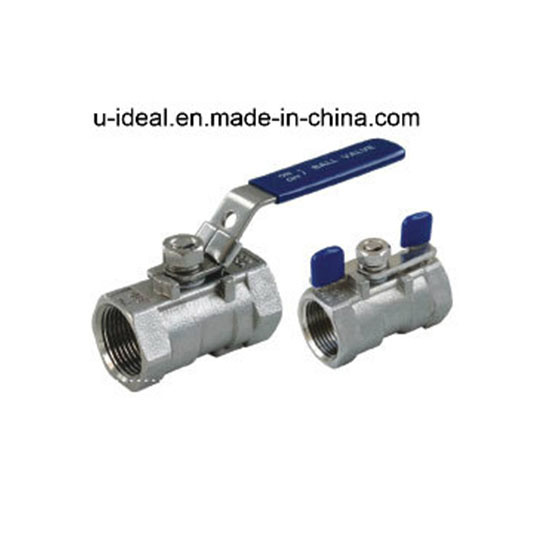

Short structure, best choice for application where with limit installation and operation space for 1PC ball valve.
Our wide range of ball valves are available in Bronze, Brass, Lead-free, PVC, Thermoplastic, Polypropylene, Carbon Steel and Stainless Steel in one-piece, two-piece, three-piece, full port, or standard port & pressures up to 11, 000 psi. And temperatures up to 1000° F (520° C). Port threads available in NPT, SAE, BSP, Metric, Flanged, Stecko, Clamp End, Butt Weld & Compression range in size from 1/4" thru 12". Ball valves are used extensively in Commercial, industrial and residential applications and are very durable, easy to repair and operate and provide a perfect shutoff even after years of use. Priced by each, box and volume quantity discounts available. Contact Tianjin U-ideal Instrument to email today and we look forward to assisting you with your Stainless Steel Ball Valves needs today.
Tianjin U-ideal manufacture and export manually, pneumatically, and electrically actuated two way and three way BallValves provide 1/4 turn (or diverting) for on-off control of fluids.
A ball valve is a flow valve with a round closure element and round seat that permits a tight shut off because of the uniform seal between the element and the seat. In compressed air applications, a ball valve is a valve controlled by a free floating ball manipulated by mechanical or fluid pressure.
Product Description
Features
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
Specifications
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
2). Material: 201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3). Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
4). Pressure: 1000WOG/1000PSI, 1.6-6.4Mpa
5). Medium Temp.: -20° C~+180° C
6). Ambient Temp.: -20° C~+60° C
7). Availably Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
8). Port: Full Port, Reduced Port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). ISO-5211 Mounting Pad for Actuator (option)
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
13). Design Standard: ASME B16.34
14). Inspection and Testing: API 598
Main Parts and Materials
1 | Body | WCB/CF8M/CF8 | 7 | Packing | PTFE |
| 2 | ball | SS316/SS304/SS | 8 | Gland | SS304/SS |
| 3 | Seat | PTFE | 9 | Handle | SS304/SS |
| 4 | Cap | WCB/CF8M/CF8 | 10 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 11 | Stem Nut | SS304/SS |
| 6 | Thrust Washer | PTFE |
|
|
|
Main Dimensions
NPS | D | L | H | W |
| 1/4" | 5 | 40 | 74 | 30 |
| 3/8" | 7 | 45 | 74 | 30 |
| 1/2" | 10 | 60 | 95 | 40 |
| 3/4" | 10 | 60 | 95 | 40 |
| 1" | 14 | 70 | 102 | 50 |
| 11/4" | 20 | 80 | 124 | 60 |
| 11/2" | 24 | 85 | 144 | 60 |
| 2" | 32 | 100 | 144 | 70 |
| 21/2" | 38 | 125 | 168 | 90 |
| 3" | 50 | 150 | 192 | 90 |
| 4" | 65 | 195 | 220 | 130 |
