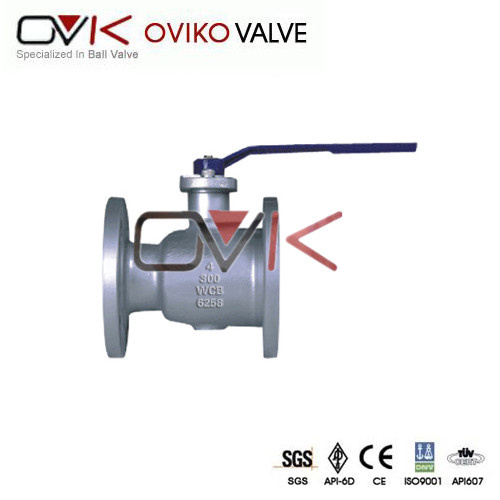

One Piece Ball Valve for Water, Oil & Gas Industry
Price: |
US $ 20-20000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Norminal diameter | NPS 1/2-8 |
Norminal pressure | Class600-Class1500 |
Materials of parts | No. | Part Name | Materials |
Carbon Steel Material |
1 | Body | ASTM A216 WCB | ASTM A351 CF8 | ASTM A351 CF8M | ASTM A351 CF3 | ASTM S351 CF3M |
2 | Seat | PTFE/PPL |
3 | Ball | ASTM A105.ENP | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L |
4 | Stem | ASTM A182 F6A | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L |
5 | Packing | Graphite |
Applicable service conditions | Applicable medium | Water,stem,oil,caol gas,nature gas | Nitrose corrosive medium | Nitrose corrosive medium | Strong Oxidizer | urea |
Applicable temperature | ≤120ºC(RTFE)/ ≤250ºC(PPL) |
Design and manufacturing | API 608 |
Face-to-face dimensions | ASME B16.10 |
Type of connection | Flange | ASME 16.5 |
Pressure Test | API 598 |
Transmission mode | Manual, worm and worm gear transmission, pneumatic, electric |
ONE PIECE FLOATING BALL VALVE
STRUCTURAL FEATURES AND USAGE
The integral ball valve has such features small fluid resistance, compact structure, light weight, flexible opening and closing. The valve adopts the integral structure, so it is much smaller than the ordinary ball valve, and its weight is much lighter with good sealing performance. It is used to cut off or connect media in pipelines. The valves mde of different materials are suitable for various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and etc.
Prod Model: |
OVK-150427 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1/2'"-8" |
Pressure: |
600lb-1500lb |
End Connection: |
RF/Rtj/Butt-Weld,Threaded, Socked Ends. |
Designed And Tested: |
API 598/6D |
Certificates: |
API6d,API607,API6fa,CE,ISO9001 |
Connection Form: |
Flange |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Channel: |
Full Bore or Reduced Bore |
Material: |
Wcb, CF8, CF8m, Lcc |
Application: |
Water, Oil & Gas |
Nominal Pressure: |
600lb-1500lb |
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.
Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.
We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
