Valve Manufacturers and Factories

Home Valve Products One Shaft With Pin Wafer Type Butterfly Valve

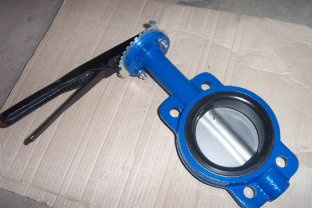

One Shaft With Pin Wafer Type Butterfly Valve

One Shaft With Pin Wafer Type Butterfly Valve
Price: Negotiable
Min Order: 1
One Shaft With Pin Wafer Type Butterfly Valve
Butterfly Valve is a kind of simple structure, at the same time it can be used for low pressure pipeline medium switch control., serve as cut off and throttling in the pipeline.
The disc and the stem are fixed by pin.

Material:
The body material: GG25/GGG40/GGG50/CF8/CF8M
The disc material: DI/SS304/SS316/AL-BZ
The stem material: SS410/SS416/SS420/SS304/SS316
The seat material: NBR/EPDM/PTFE/VITON

Design Standard:
API 609/ISO 5752/BS5155
Flange Standard:
ANSI 125#/150#; JIS5K/10K/16K; DIN 2501 PN6/PN10/PN16/; BS4504 PN10/PN16

Features:
Small in size and light in weight, easy installation and maintenance. It can be mounted wherever needed.
Simple and cmpact construction,
Minimized operating torque, energy saving.
Flow block is small. Excellent regulation perfromance.
Wide selection of materials, applicable for various medium.
Markets: Western Europe
Hebei Diefei Valve Co., Ltd. is a specialized factory, which gathering the medium and lower pressure valve developing, manufacturing and selling together. We are one member of Chinese Valve Association, an advanced enterprise of the Valve Industry in Hebei Province&important producerin China. And we own the rights of the importing and exporting. We established Crane Ningjin Valve Co., Ltd. With Crane Valve USA in 1995.

Our main products are Wafer Type Butterfly Valve, Screw End Butterfly Valve, Flange Type Butterfly Valve, Wafer Type Check Valve, Gate Valve and Globe Valve. All the products are exported to USA, Europe, South Africa, South American, Australia and South-East Asia, Taiwan etc, countries and area.

In year of 2001, we got the ISO 9001 certificate and CE approved certificate. We would like to outstanding product quality and service, dedicated servive at home and abroad.
